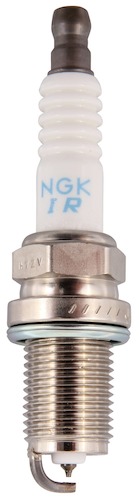

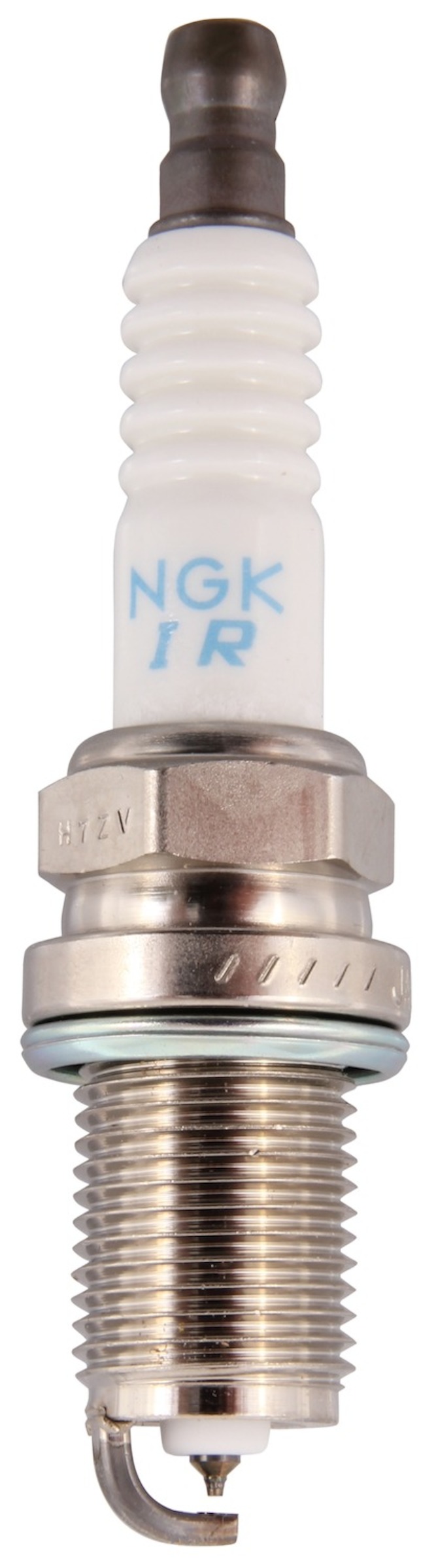

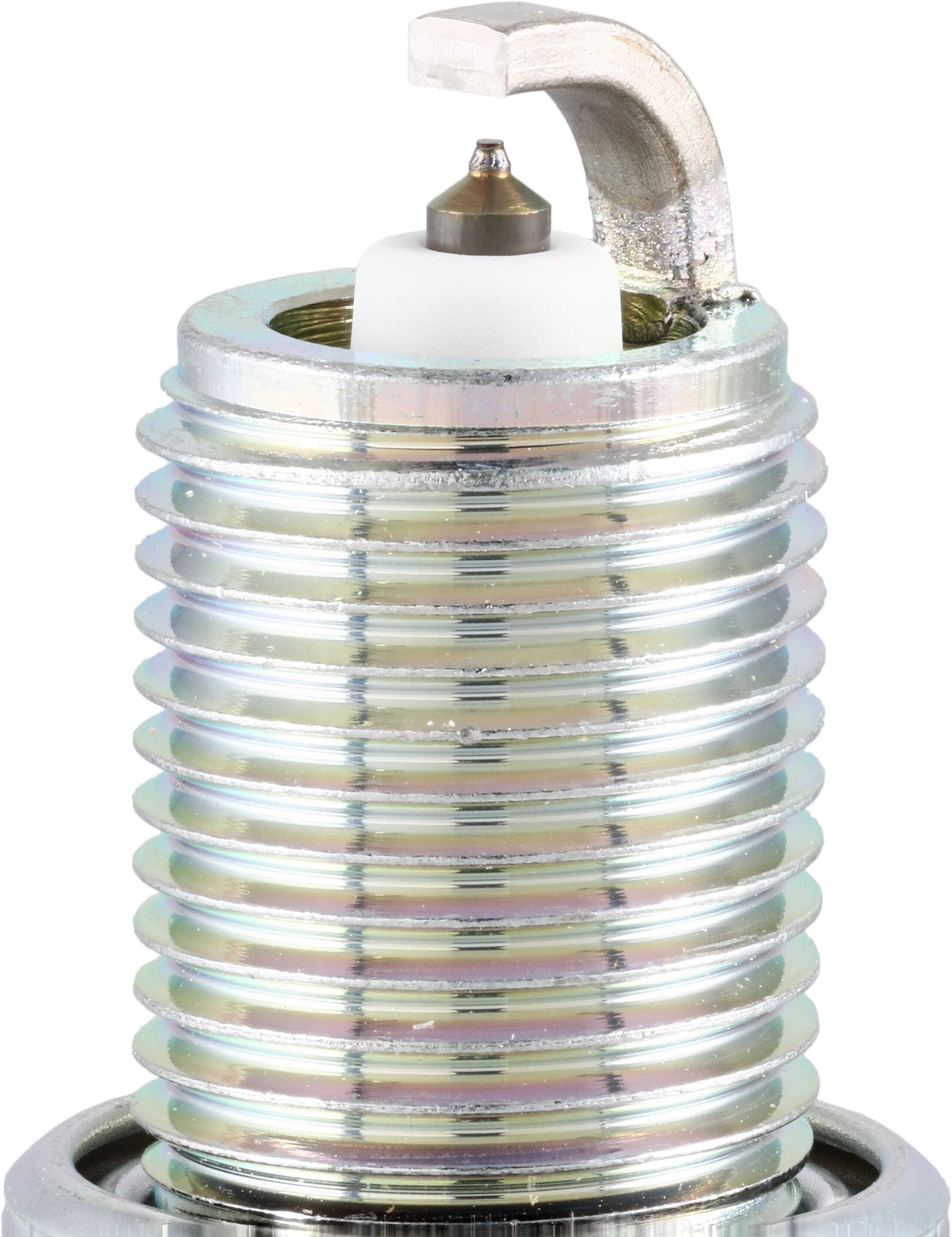

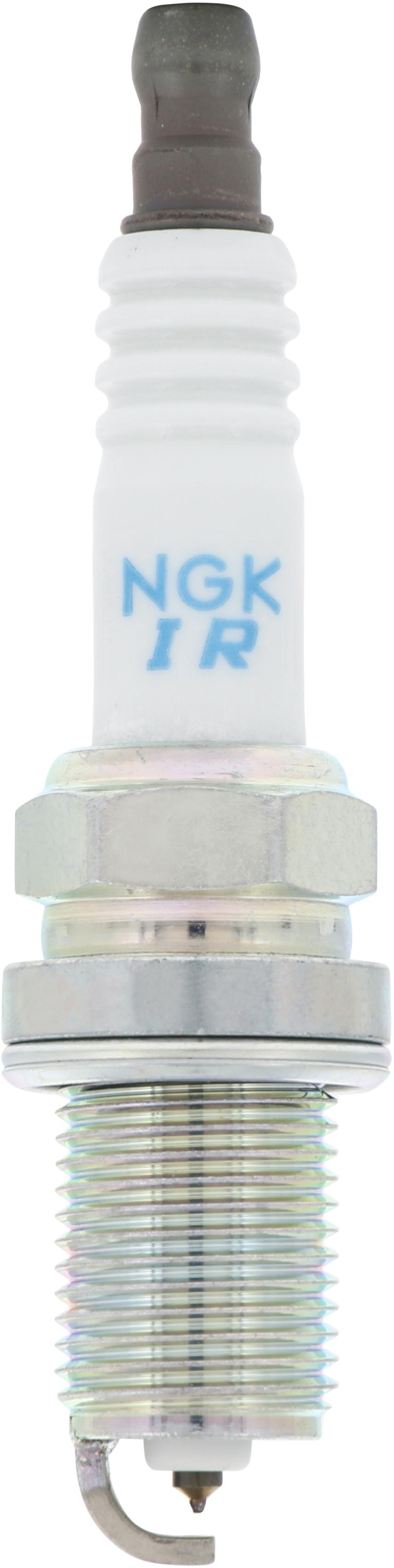

NGK Laser Iridium Spark Plug
Part # 96416 | Line Code: NGK
brandNameImage
brandNameImage

$22.41
$22.41
error
Not Fitted

Product Details
expand_less
Thread Diameter 14.0
Ground Electrode Quantity 1
Part Number IFR6F8DN
Heavy Duty Supplier Yes
Service Number IFR6F8DN
Ground Configuration J-Gap
Washer Included Yes
Center Electrode Core Material Copper
Short Style Spark Plug No
Seat Type Flat
Center Electrode Tip Material Iridium
Insulator Height 50.5
Ground Electrode Core Material Nickel
Skirt Length 0.0
Material Grade Iridium Platinum
Resistor Type Yes
Alliance Keywords spark plug, bougie d'allumage, bougie
Manufacturer Heat Range 6
Reach 19.0
Ground Electrode Tip Design Standard
Electrical Terminal Type Non-removable Nut
Thread Size M14 - 1.25
Resistance 5000.00
Gap Size 0.8
Insulator Material Ceramic
Stock Number 96416
Metallurgy Iridium Platinum
Grade Type Performance
Hex Size 5/8" (16mm)
Part Terminology Spark Plug

Features & Benefits
expand_more
NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.
