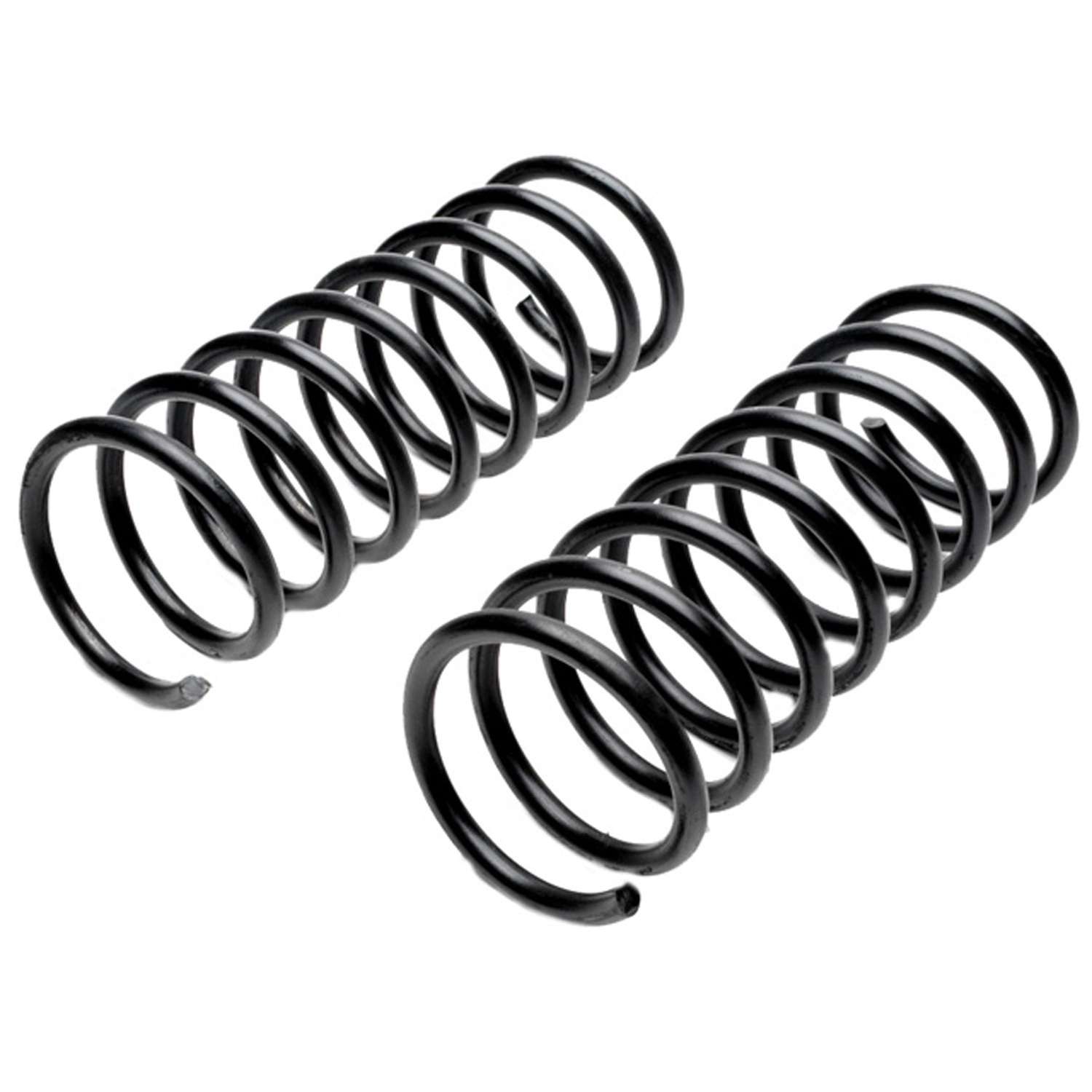

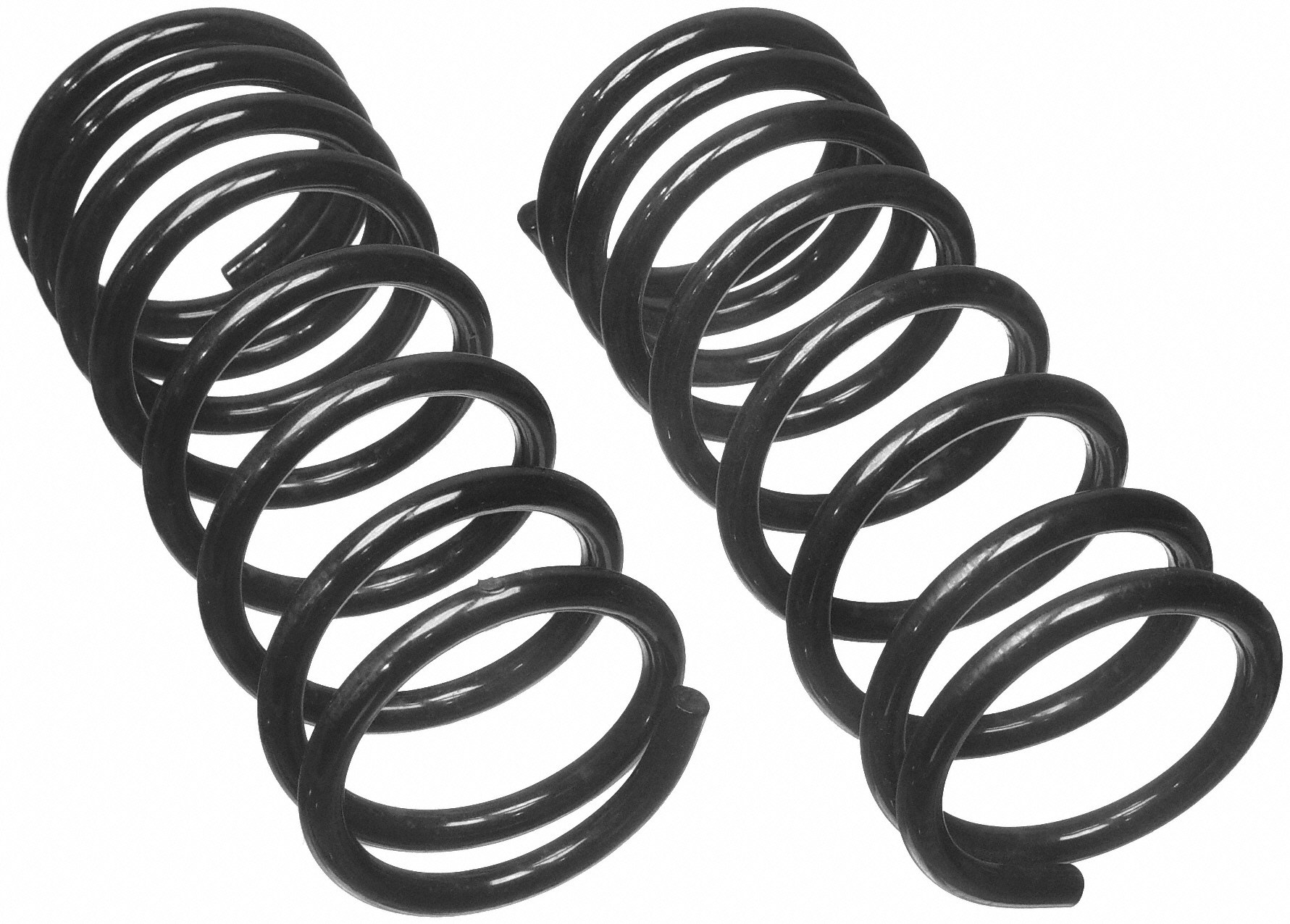

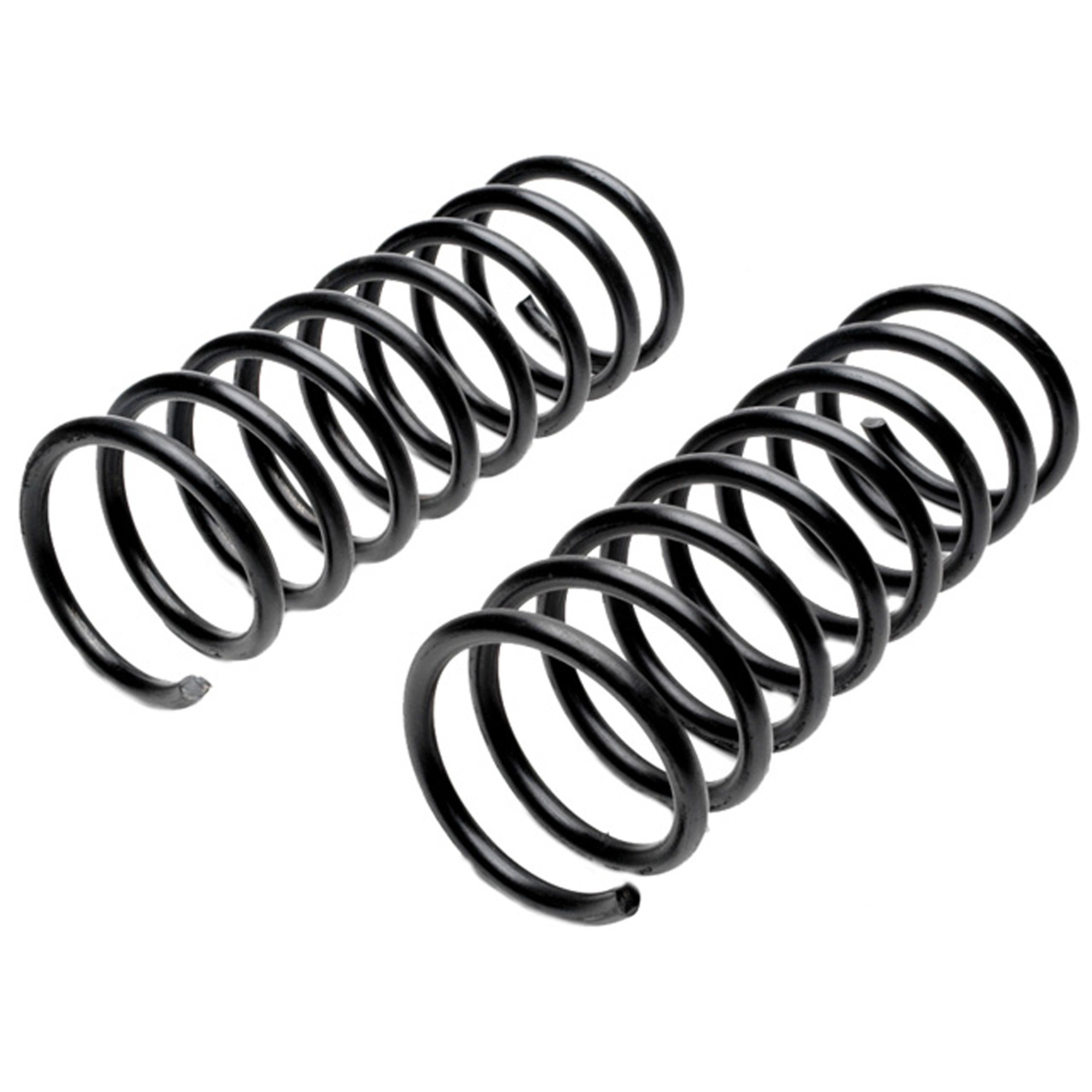

Coil spring set
Part # CC631 | Line Code: MOG
brandNameImage
brandNameImage
$182.89
$182.89
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Installation Height - Inches 9.75
ID - Inches 3.88
Rear Spring Compressed Length 247.70
Heavy Duty Supplier Yes
Bar Diameter - Inches 0.47
Bar Diameter - MM 12.00
Installation Height - MM 247.70
Front Spring Compressed Length 9.75
Load - lbs 390.00
ID - MM 98.60
Front Spring Outside Diameter 4.820
Front Spring Relaxed Length 330.20
End Type 1 Tangential
Free Height - Inches 13.00
End Type 2 Tangential
Rear Spring Outside Diameter 4.820
Spring Rate - lbs per inch 120.00
Rear Spring Relaxed Length 330.20
Spring Type Variable Rate
Wire Diameter 12.00
Spring Color Black
Free Height - MM 330.20
Part Terminology Coil Spring Set
Features & Benefits
expand_more
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.
Application Summary
expand_more
1981-1985 Isuzu I-Mark (Rear) (Drive: RWD | Qualifier: Variable Rate); 1983-1988 Isuzu Impulse (Rear) (Qualifier: Variable Rate); 1976-1987 Chevrolet Chevette (Rear) (Qualifier: Variable Rate); 1981-1987 Pontiac T1000 (Rear) (Qualifier: Variable Rate)
