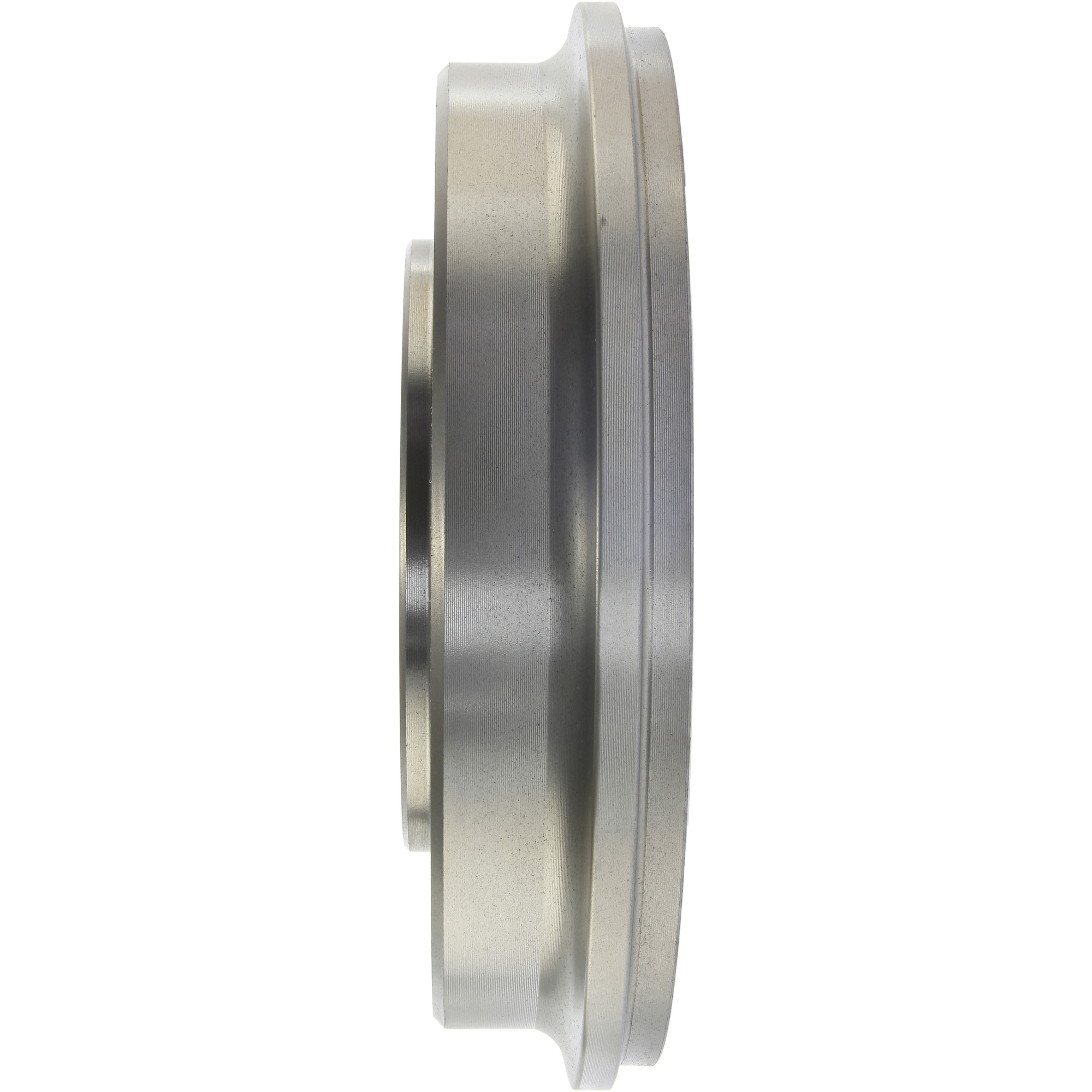

C-Tek Standard Brake Drum
Part # 123.62041 | Line Code: CEC
brandNameImage
brandNameImage
$72.97
$72.97
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Product Grade [cntrc] Standard
Hub Hole / Register [cntrc] mm 60.000
Hub Hole / Register [cntrc] in 2.362
Heavy Duty Supplier Yes
Attribute ID (Type) California Proposition 65
Nominal Drum Diameter 9.055
Height [cntrc] in 2.480
Mounting Hole Diameter 0.555
Friction Surface Width [cntrc] mm 47.500
Misc Holes [cntrc] 1
Bolt Hole Quantity 5
Friction Surface mm 47.5
Bolt Circle Diameter [cntrc] in 4.133
Maximum Brake Diameter (Discard) 9.134
Weight [cntrc] lbs 12.650
Friction Surface Width [cntrc] in 1.870
Bolt Circle Diameter [cntrc] mm 105.000
Friction Surface inches 1.87
Weight [cntrc] kgs 5.750
Mounting Type [cntrc] Floating
Outer Cooling Fins No
Height [cntrc] mm 62.992
Bolt Circle Diameter 100.0
California Proposition 65 WARNING: Cancer and Reproductive Harm
Outside Diameter 10.787
Part Terminology Brake Drum
Features & Benefits
expand_more
C-TEK® brake rotors and pads provide exceptional quality and value. Utilizing world-wide manufacturing sources allows Centric Parts to provide the highest quality replacement parts while maintaining value.
Application Summary
expand_more
Chevrolet Sonic 2020-2012, Trax 2019-2013, Trax 2022
