| Item Grade | Standard Replacement |
| Mounting Hole Quantity | 1 |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| FAQs | Yes, use of the correct tool based on engine application and pulley type is necessary to prevent damage to the pulley. |
| Mount Hole Quantity | 1 |
| Width (Belt) (in/mm) | 119 mm |
| Is Or Contains A Battery | No |
| Product Condition | New |
| Color | Black |
| FAA_A6 | Pulleys are typically made of plastic composite nylon or steel. |
| FAA_A7 | Flat, V-belt, and Multi groove. |
| Contains Electronic Components? | No |
| FAA_A4 | The replacement pulley should be pressed to the point where the hub is flush with the end of the shaft. |
| FAA_A5 | Accessory pulley alignment should be checked using a straightedge if a pulley alignment issue is suspected. The straightedge should lie flat across the fascia of two adjacent pulleys. If the straightedge does not lie flat, then one of the pulleys is misaligned. To validate which of the pulleys is causing the issue, check each against other pulleys until you isolate the one that is out of line. Pulley alignment can also be checked with a laser alignment tool. |
| FAA_A2 | Yes, use of the correct tool based on engine application and pulley type is necessary to prevent damage to the pulley. |
| FAA_A3 | Pulleys are painted with weather resistant epoxy paint. |
| FAA_A1 | The age and continual flexing of a belt will cause it to crack and deteriorate. Stretching loosens the belt, causing it to slip on the pulleys. A cracked belt will eventually break. The tension and general condition of the belt should be checked periodically. |
| Prop 65 | NO |
| Color/Finish | Black |
| Outside Diameter (In) | 4.96 |
| Outside Diameter | 4.99 |
| E-Waste | No |
| Is Item A Chemical | No |
| FAQ_Q5 | How can I check to see if the replacement pulley is aligned with the adjacent accessory pulleys? |
| FAQ_Q4 | How far should the replacement pulley be pressed on the shaft for correct alignment with the other accessory pulleys? |
| Features and Benefits | Same grade material and gauge as O.E. for strength and durability |
| Is or contains a bulb? | No |
| FAQ_Q7 | What are the different types of pulley designs? |
| FAQ_Q6 | What type of material are pulleys made of? |
| FAQ_Q1 | How important is belt condition and tension? |
| FAQ_Q3 | Do you powder coat your pulleys? |
| FAQ_Q2 | Are there any special tools needed to remove and install the pulley? |
| Bore Diameter | 0.591 |
| Package Contents | Pulley |
| Does it require SDS | No |
| Mount Type | Press-fit |
| First Application Year | 2004 |
| Outside Diameter (in/mm) | 4.96 in. |
| Belt Type | Serpentine |
| Groove Quantity | 6 |
| Shaft Diameter (MM) | 15.00 |
| Is item a chemical? | No |
| SDS Required | No |
| Finish | Black Plastic |
| Width | 0.882 |
| Is the item CARB affected? | No |
| Shaft Diameter | 15 |
| Mounting Hardware Included | No |
| Material | Plastic |
| Shaft Diameter (in/mm) | 15 mm |
| Width (Belt) (mm) | 119.00 |
| Is Or Contains A Bulb | No |
| Is or contains a battery? | No |
| Contains Electronic Components | No |

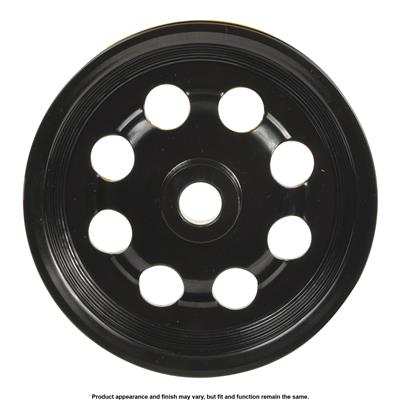

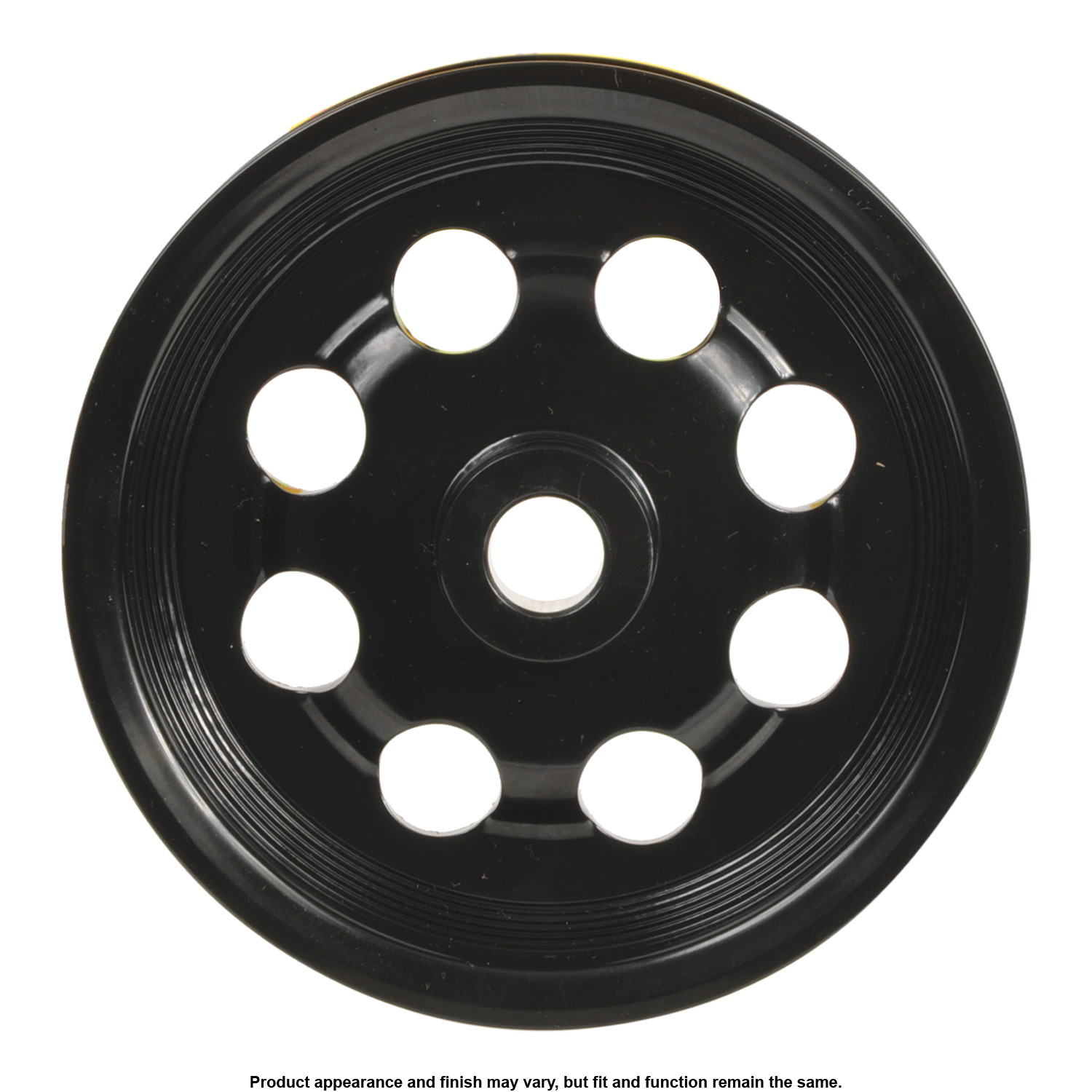

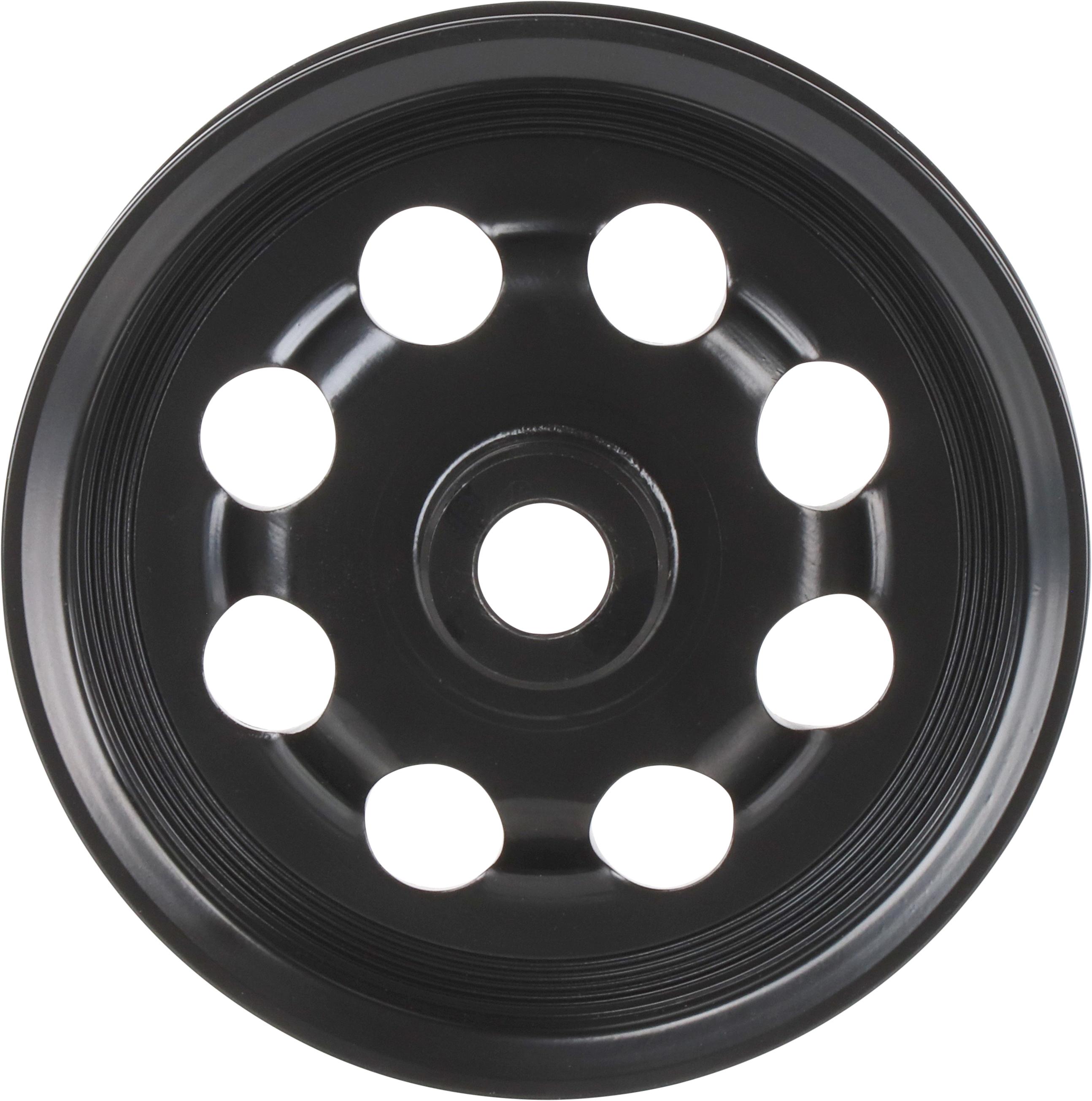

| Part Terminology | Power Steering Pump Pulley |
