U & CV Joints & Drive Shaft

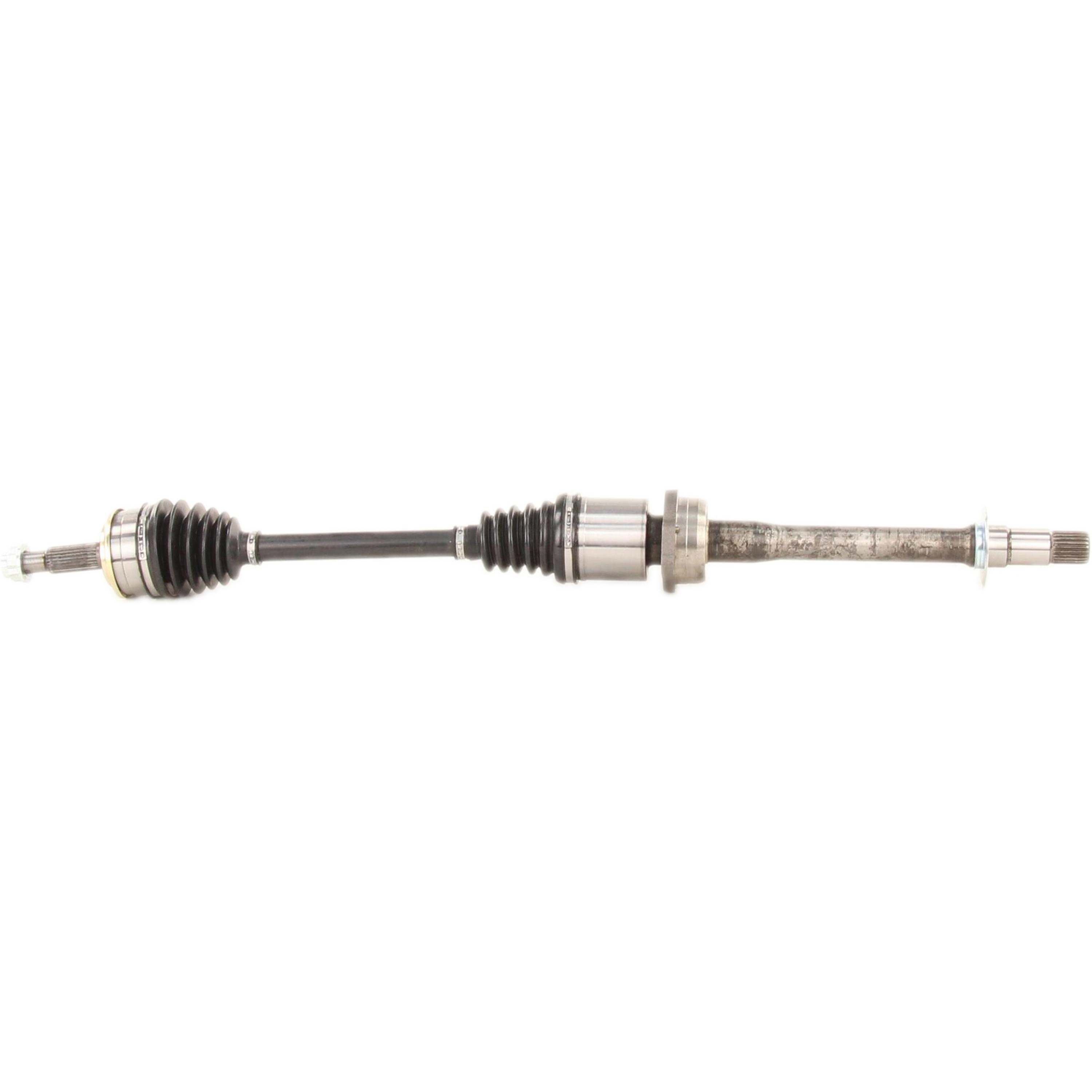

AAR CV Axle Shaft
Part # TO-8436 | Line Code: TRM
brandNameImage
brandNameImage

$222.09
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male+Long
Axle Nut Height (mm) 21.5

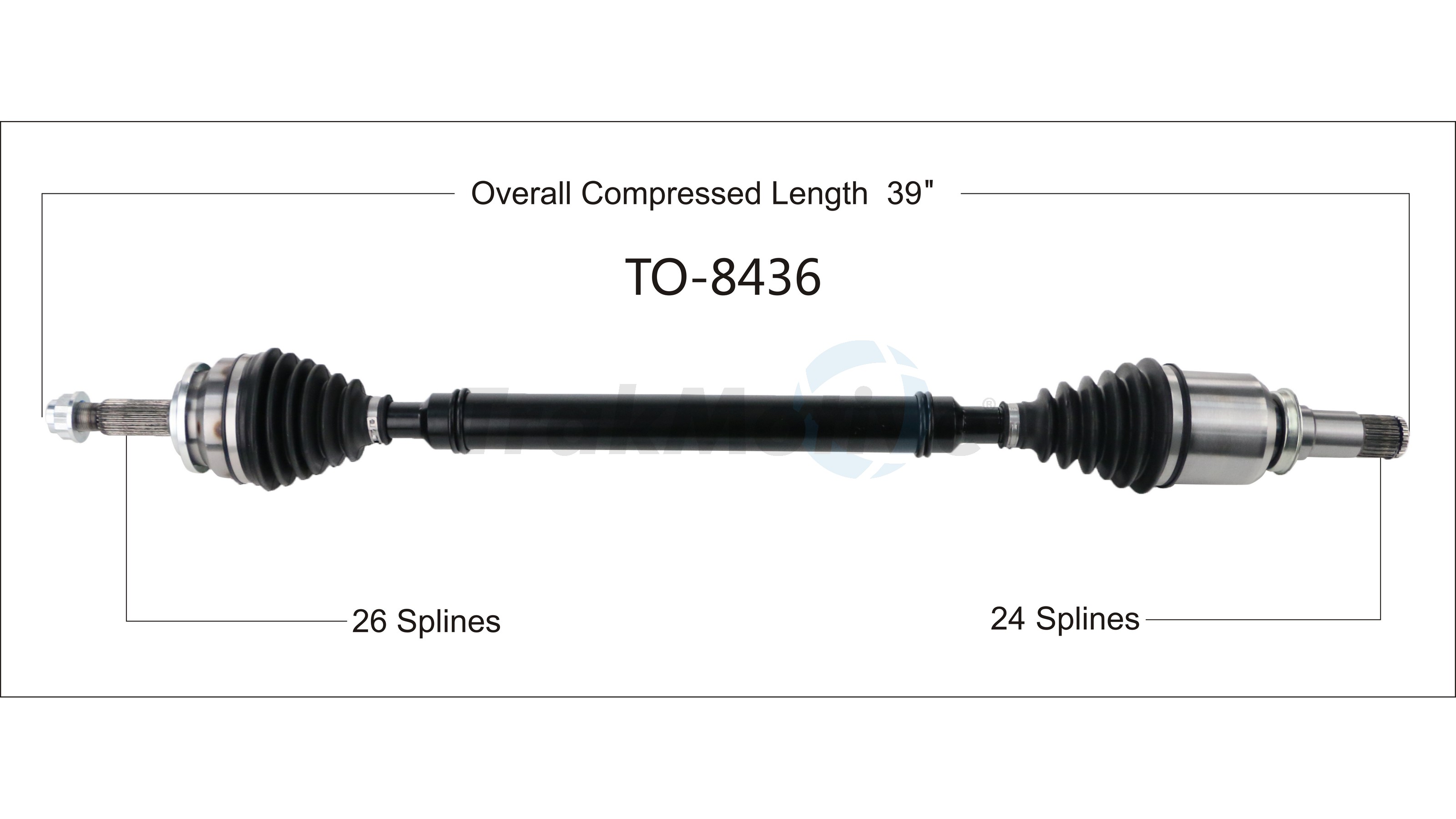

Overall Compressed Length (mm) 991
Overall Compressed Length (in) 39.02
Inboard Shaft Connection Style Spline
Axle Nut Length (mm) 34.64
Axle Nut Length (in) 1.36
Axle Nut Hex Size (in) 1.18
Number of Bolt Holes 0
Number Of Outboard Joint Bolt Holes 0
Number of Outboard Splines 26
Axle Nut Hex Size (mm) 30
Axle Nut Thread Size M22X1.5
Number Of Inboard Splines 24
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
ABS Ring Type N/A
Axle Bolt Hex Size (mm) N/A
Axle Nut Locking Type Stake
ABS Ring Tooth Count 0
Number Of Inboard Shaft Bolts 0
New Or Remanufactured New
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Bolt Length (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Axle Nut Included Yes
Boot Material CR
Number Of Outboard Shaft Bolts 0
Number Of Inboard Joint Bolt Holes 0
Axle Nut Height (in) .85
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

Toyota
