U & CV Joints & Drive Shaft

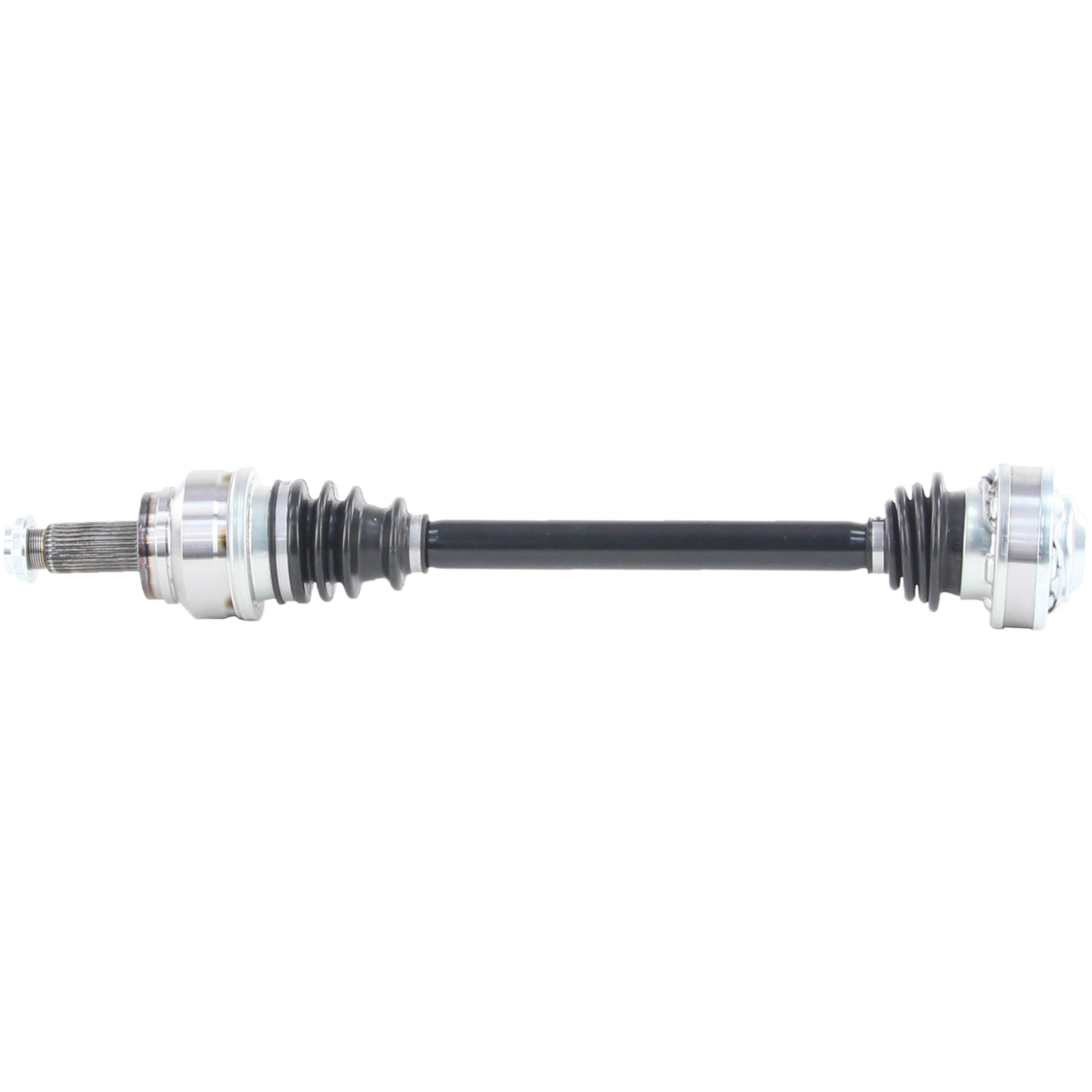

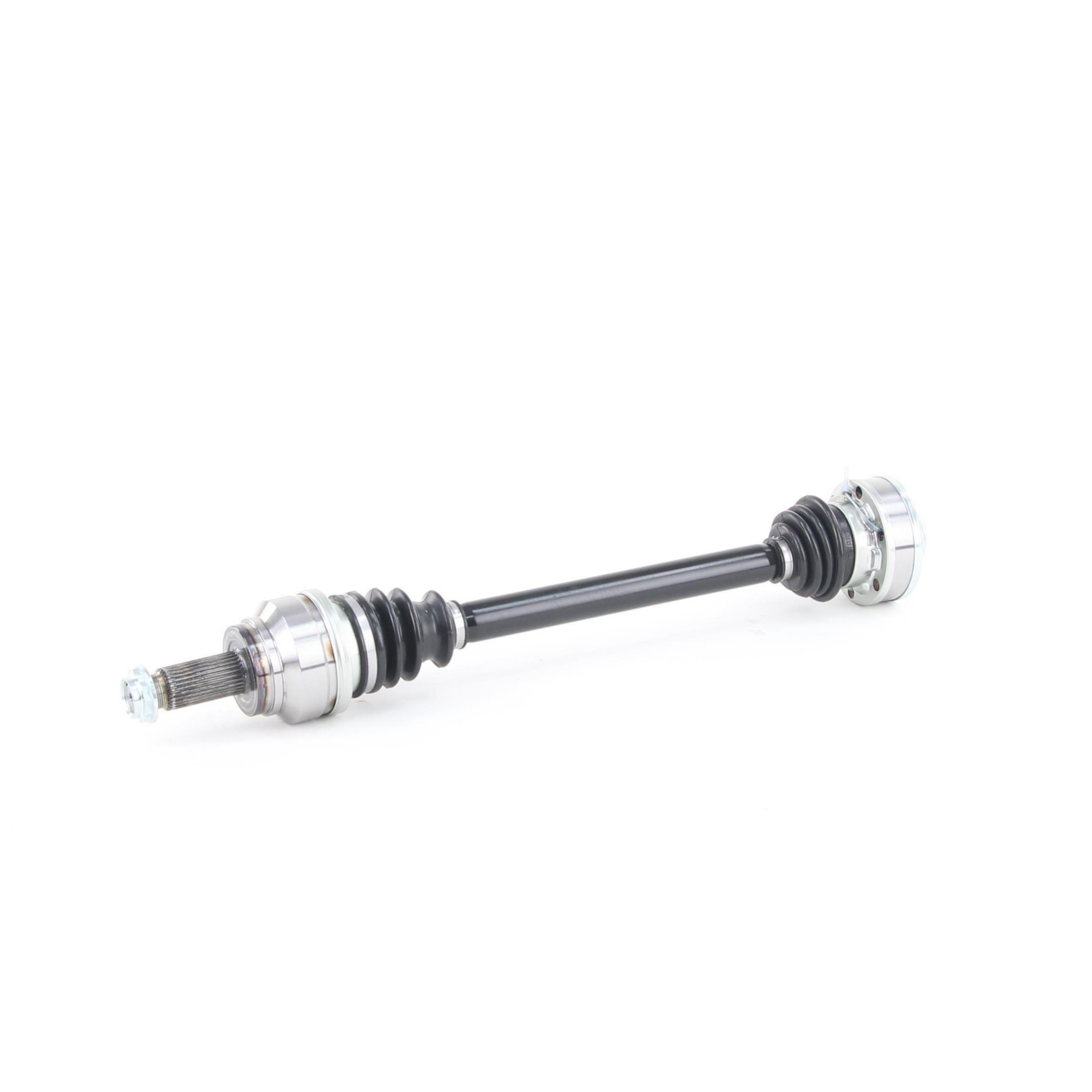

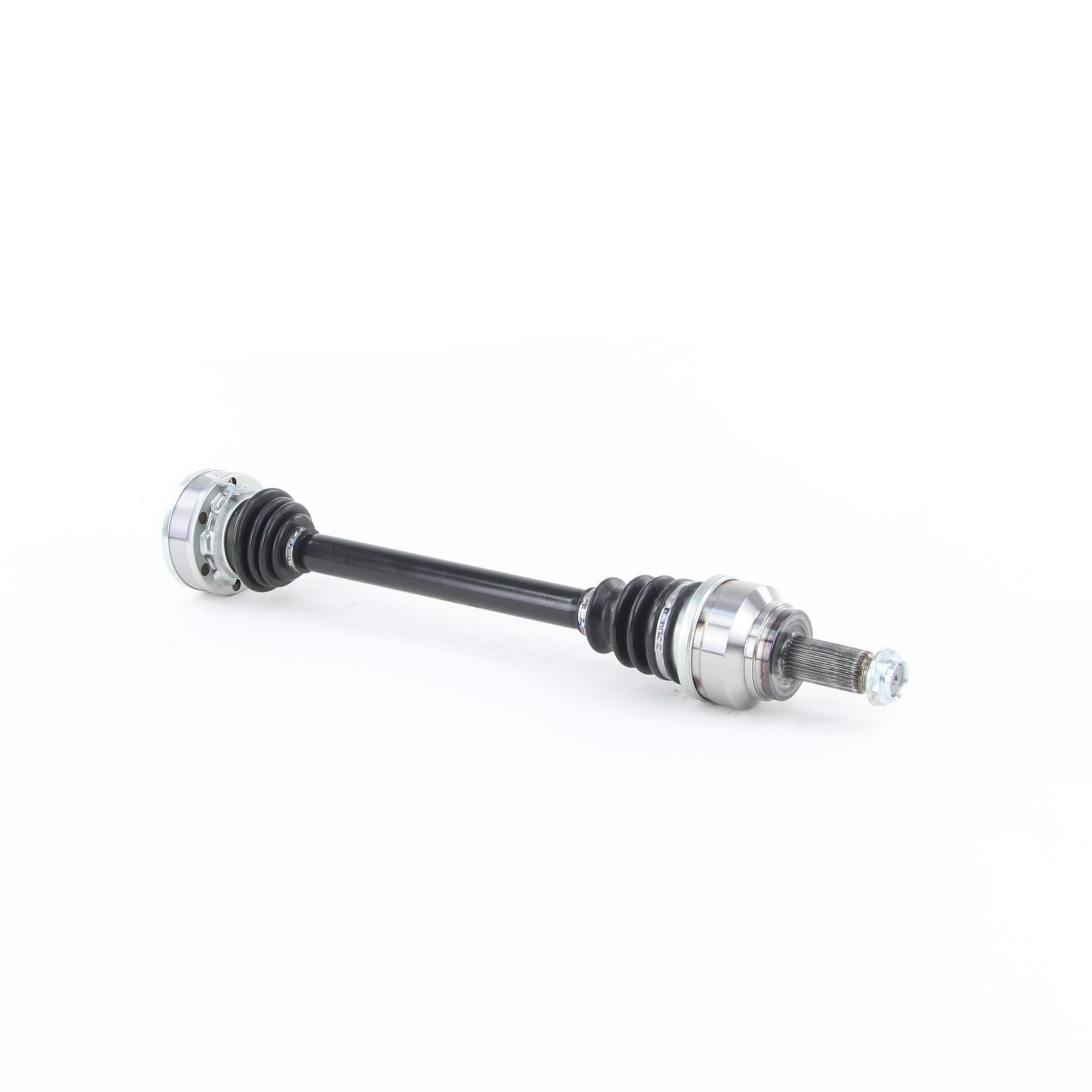

CV Axle Shaft
Part # BM-8205 | Line Code: TRM
brandNameImage
brandNameImage

$339.15
$339.15
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Bolt-On
Axle Nut Height (in) N/A
Axle Nut Length (in) N/A
Overall Compressed Length (mm) 633
Overall Compressed Length (in) 24.92
Axle Nut Length (mm) 41
Number of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 6
Number Of Outboard Joint Bolt Holes 0
Axle Nut Hex Size (mm) 36
Number of Outboard Splines 30
Axle Nut Thread Size M27X1.5
Axle Nut Hex Size (in) 1.4
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
ABS Ring Type N/A
Axle Bolt Hex Size (mm) N/A
Axle Nut Socket Size 36
Axle Nut Locking Type Stake
ABS Ring Tooth Count 0
Overall Extended Length (mm) 700
Overall Extended Length (in) 27.56
Number Of Inboard Shaft Bolts 0
New Or Remanufactured New
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Bolt Length (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Inboard Shaft Connection Style Bolt-On
Axle Nut Height (mm) 16
Axle Nut Included Yes
Grade Type Premium
Boot Material CR
Number Of Outboard Shaft Bolts 0
Number Of Inboard Splines 0
Outboard Joint Boot Material Neoprene
Inboard Joint Boot Material Neoprene
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

BMW
