Vehicles, Equipment, Tools, and Supplies
keyboard_arrow_right

Hardware, Fasteners and Fittings

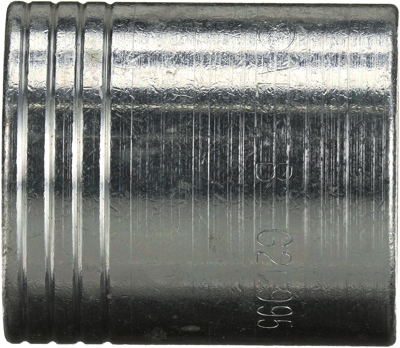

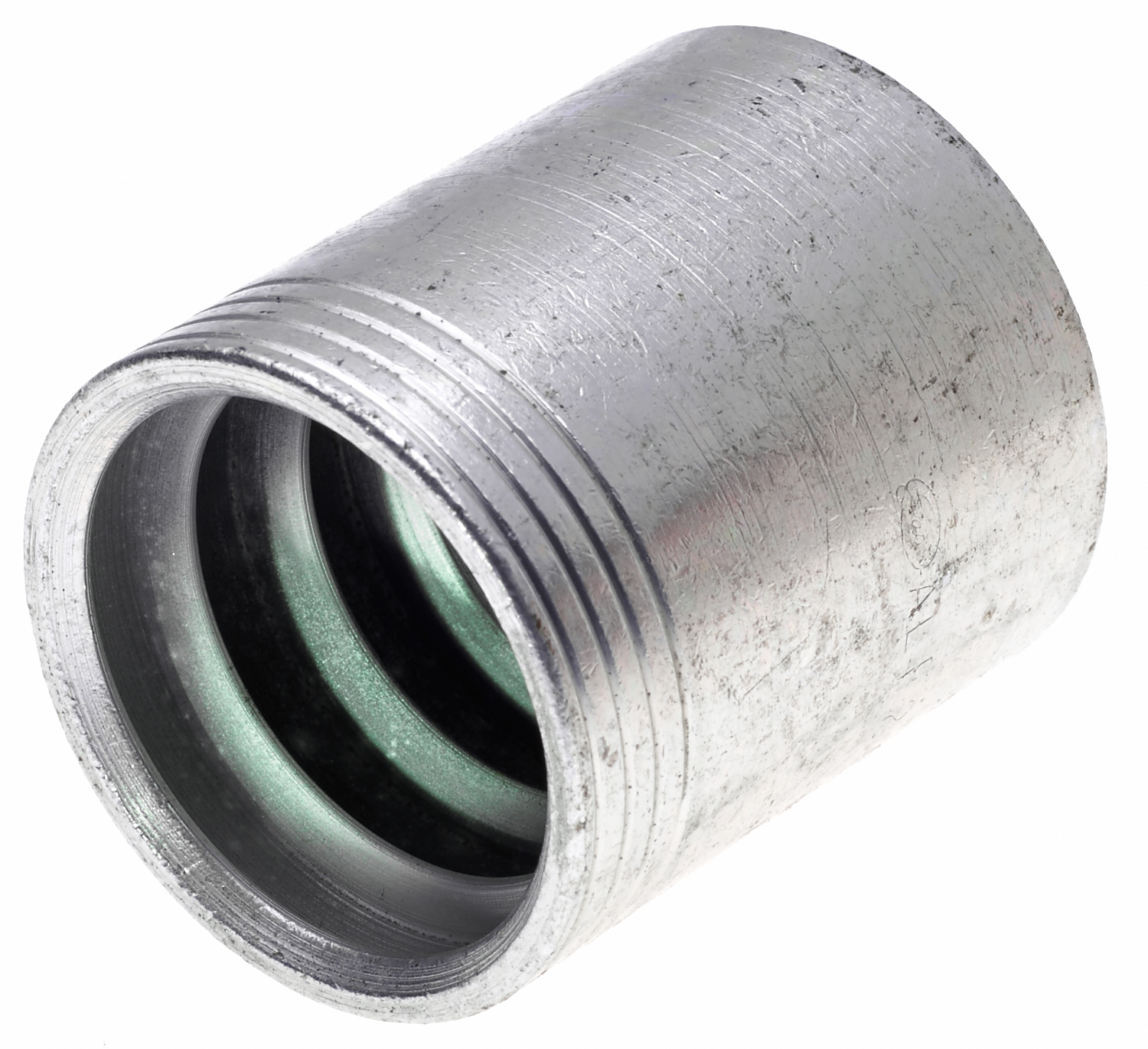

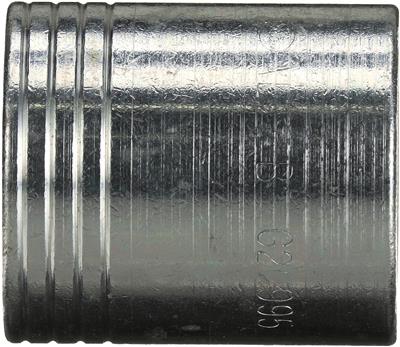

GS Ferrule for 4-Spiral Hose (GlobalSpiral)
Part # G20995-0416 | Line Code: GBL
brandNameImage
brandNameImage
$22.88
$22.88
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral GS Ferrule for 4-Spiral Hose
Hose Inside Diameter (mm) 25.4
Length (mm) - L 56.4
Heavy Duty Supplier Yes
Hose Inside Diameter (in) 1
Hose Recommendation All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Length 2.22
Outside Diameter (MM) 52.6
Inside Diameter 1
Length (in) 2.22
Outside Diameter (In) 2.07
Length (MM) 56.4
Outside Diameter 52.6
Alliance Keywords hydraulic hose fitting, raccord hydraulique
Length (in) - L 2.22
Industrial Description 16GS1F-4
Part Terminology Hydraulic Ferrule Fitting
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
