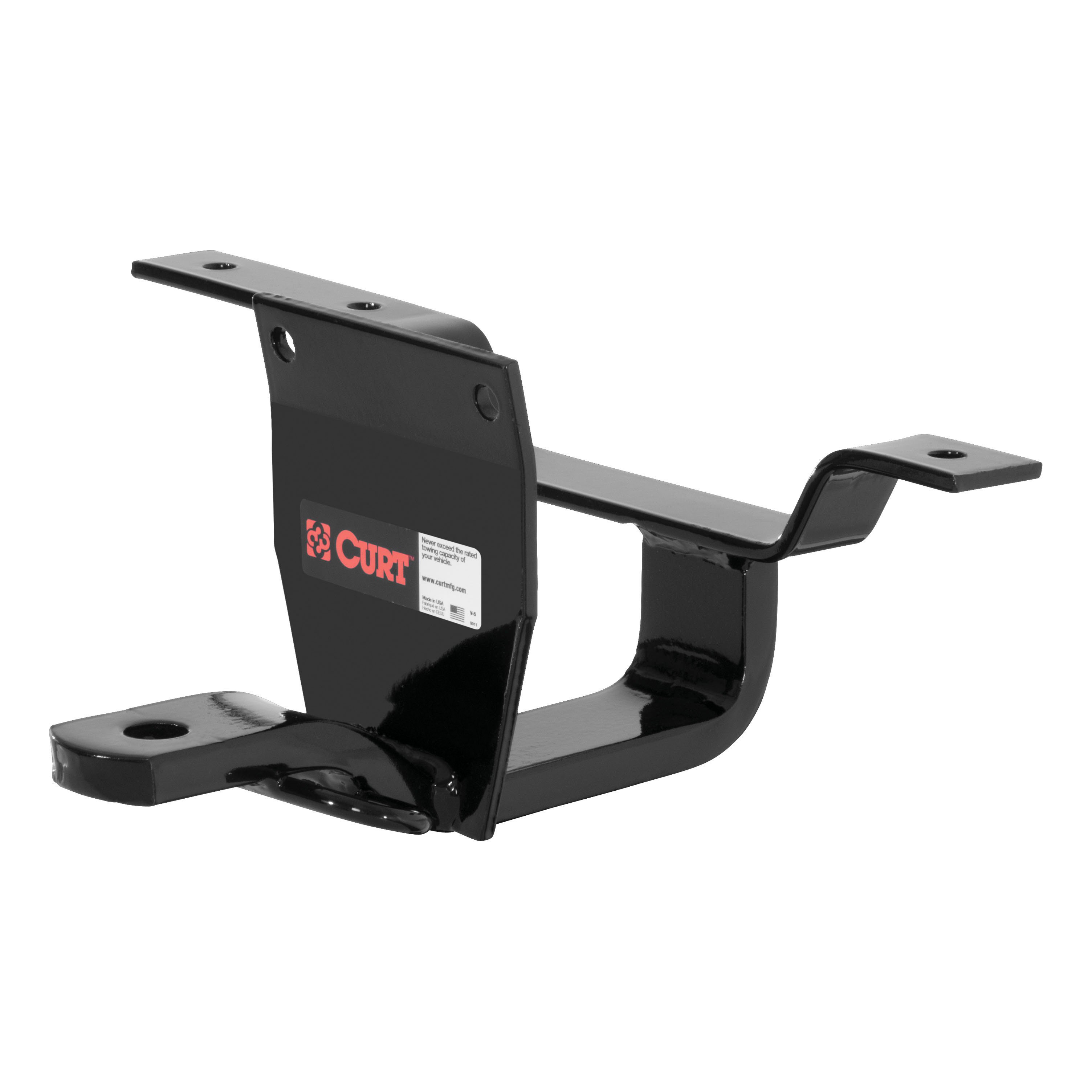

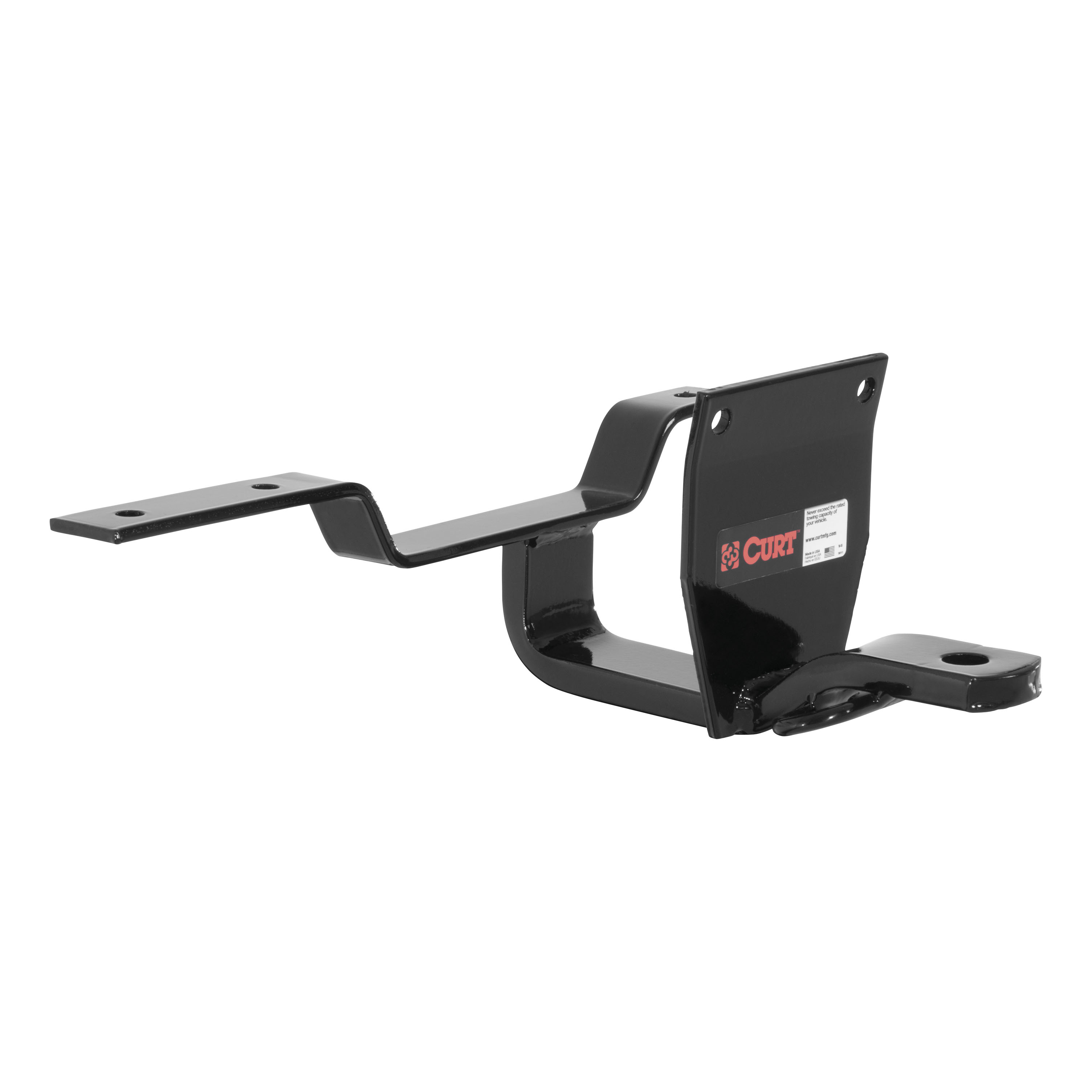

Class 1 fixed-tongue trailer hitch with 3/4\" trailer ball hole
Part # 11549 | Line Code: CUT
brandNameImage
brandNameImage

$384.37
$384.37
error
Not Fitted

Product Details
expand_less
Box Height in Inches - XA 13
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Retail Width - XA 14.000
Weight Carrying Capacity(WC) 1,500 LB
Item Height - XA 6.290
Title Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
Retail Length - XA 17.000
Box Length in Inches - XA 16
Rate Class - XA 70.0
Item Length - XA 16.600
Weight Distribution Tongue Weight(WDTW) n/a
Finish - XA GLOSS BLACK POWDER COAT
Retail Height - XA 14.000
Box Width in Inches - XA 13
Weight Distribution(WD) n/a
Product Weight - XA 11.000
Item Class - XA MFH
Item Width - XA 11.250
Receiver Tube Size 1.25
Parcel Allowed - XA Yes
Main Body Shape Flat
Class ID 1
Tongue Weight(TW) 150 LB
Shipping Weight - XA 10.550
Part Terminology Trailer Hitch

Features & Benefits
expand_more

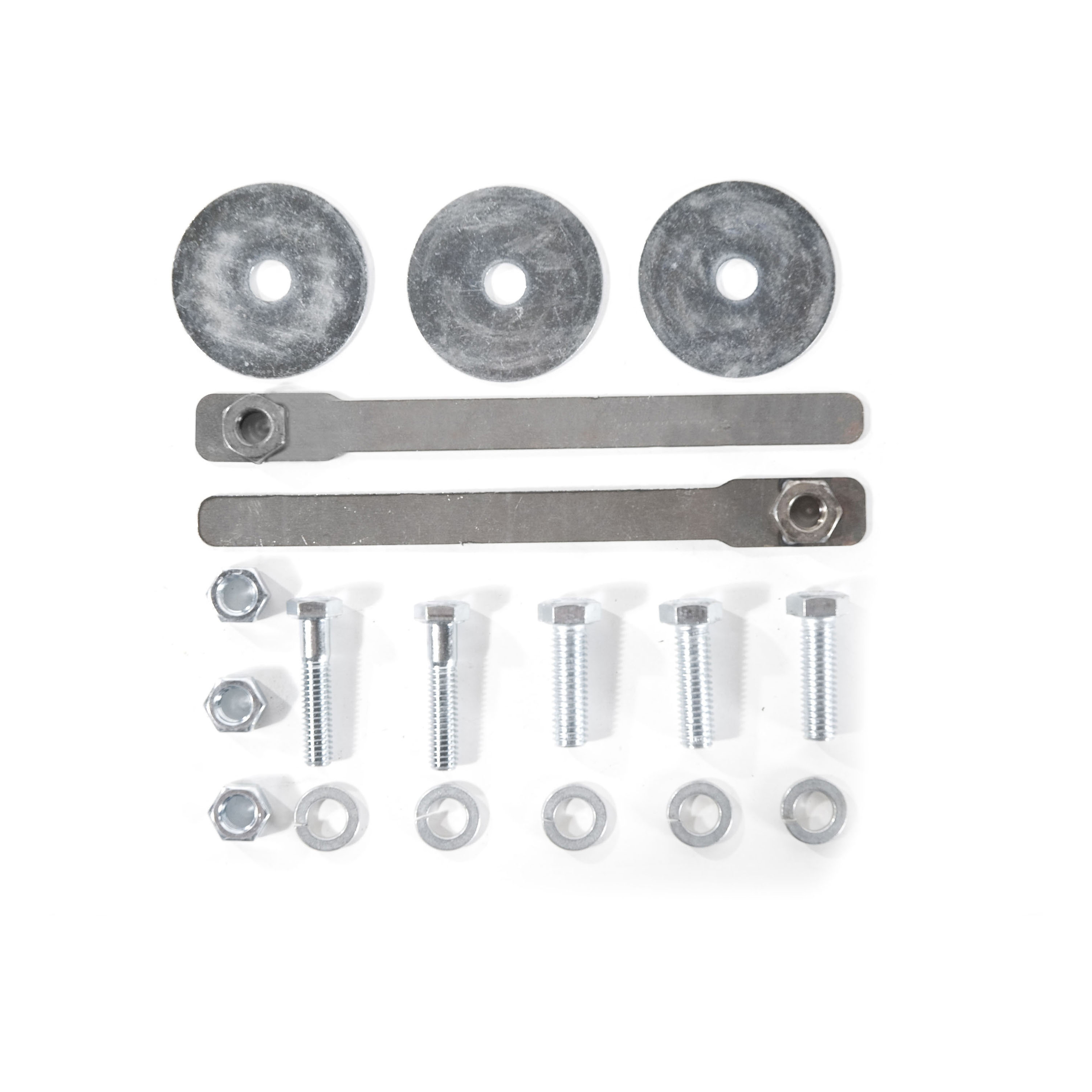

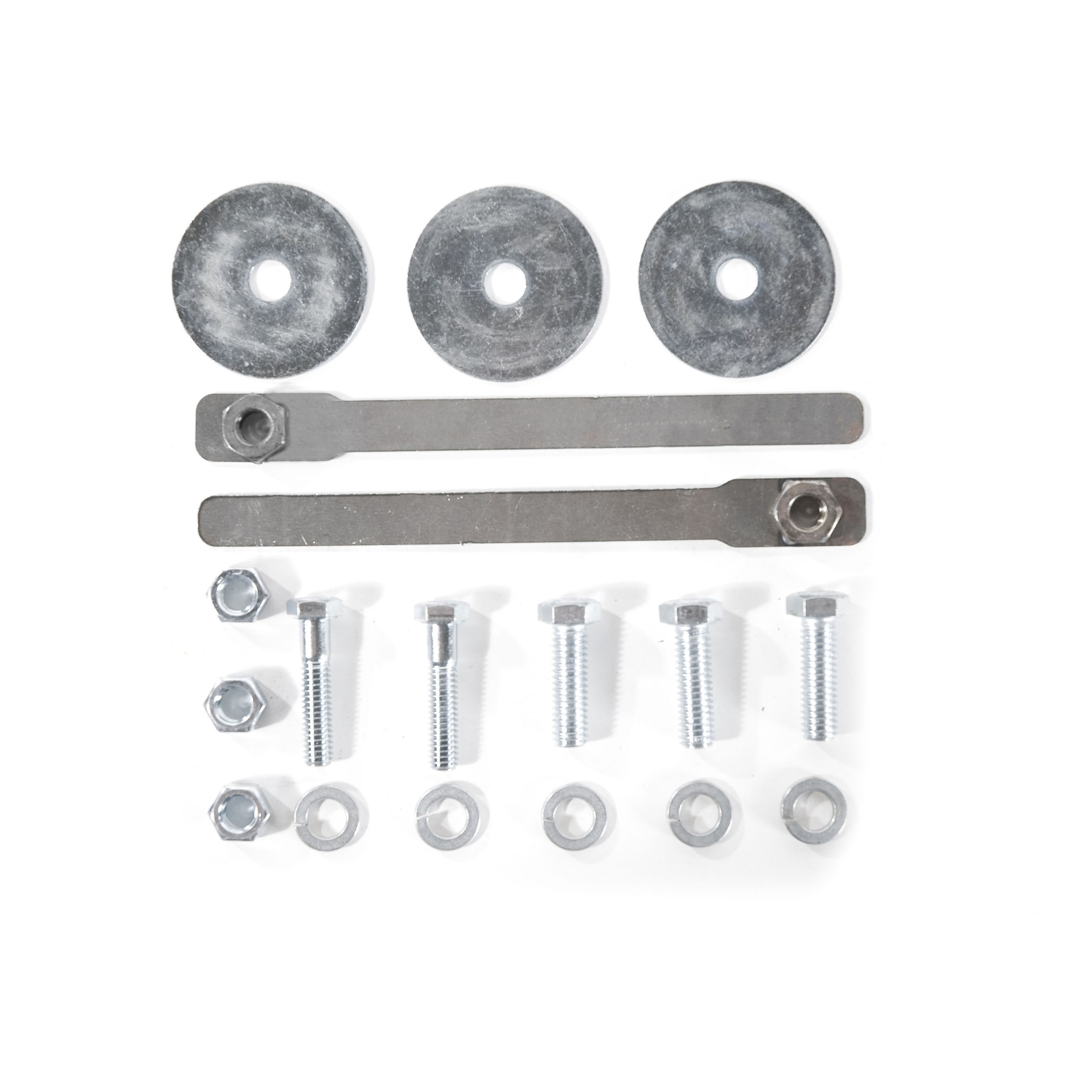

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality American steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Nissan 240SX Fastback (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. Like all CURT receiver hitches, this class 1 hitch is made right here in the USA and is backed by a one-year finish warranty and a limited lifetime warranty.

Application Summary
expand_more

CURT 11549 Custom Class 1 Fixed-Tongue Trailer Hitch (3/4\" Trailer Hitch Ball Hole)
