| Slip Yoke | No |
| Outboard Spline Quantity | 30 |
| Inboard Spline Quantity | 27 |
| Shaft Diameter | 1.063 |
| Outboard Joint Type | Spline |
| Boot Rib Quantity | 3 |
| Shaft Material | Steel |
| Boot Material | Neoprene |
| Universal Joints Included | No |
| CV Joints Included | Yes |
| Axle Nut Included | Yes |
| Grade Type | Standard |
| Dynamic Damper Attached | No |
| ABS Sensor Ring Included | No |
| Boot Color | Black |
| Mount Type | Spline |
| Compressed Length | 971.55 |
| Inboard Joint Type | Spline |
| Prop 65 | NO |
| SDS Required | No |
| E-Waste | No |
| Product Condition | Remanufactured |
| Is or contains a battery? | No |
| Is or contains a bulb? | No |
| Contains Electronic Components? | No |
| Is the item CARB affected? | No |
| Is item a chemical? | No |
| Package Contents | Complete Axle; Instruction Sheet |
| FAA_A9 | Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications. |
| FAA_A8 | Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly. |
| FAA_A7 | NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one. |
| FAQ_Q3 | When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise? |
| FAQ_Q11 | Can I let the CV Drive Axles hang while I am working on the car? |
| FAQ_Q12 | The wheels wobble when I make a turn. What's the problem? |
| FAA_A10 | When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking. |
| FAQ_Q9 | Is it OK to use an impact hammer to install the retaining nut? |
| FAA_A4 | The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up. |
| FAA_A6 | The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time. |
| FAQ_Q6 | I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do? |
| FAQ_Q10 | When I replace the CV drive axles, should I reuse the old seals? |
| FAQ_Q2 | I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why? |
| FAQ_Q8 | The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it? |
| FAA_A12 | The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem. |
| FAQ_Q1 | Are the CV Drive Axle shafts balanced at the factory? |
| FAA_A11 | Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint. |
| FAQ_Q4 | When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong? |
| FAA_A3 | The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced. |
| FAQ_Q5 | I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this? |
| FAA_A2 | When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on. |
| FAQ_Q7 | The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it? |
| FAA_A1 | Shafts are inspected 100% for run out to prevent vibrations. Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly. |
| FAA_A5 | The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint. |

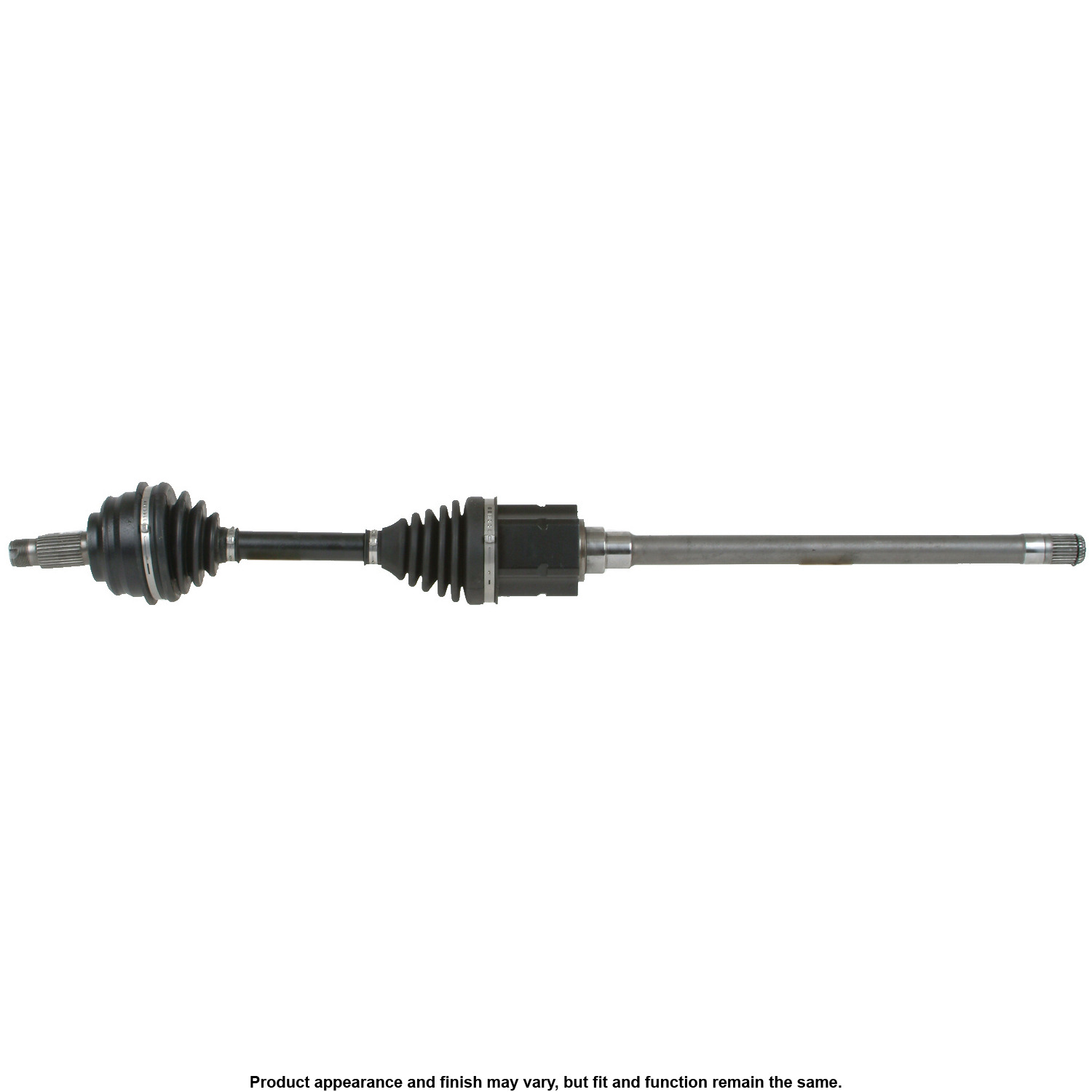

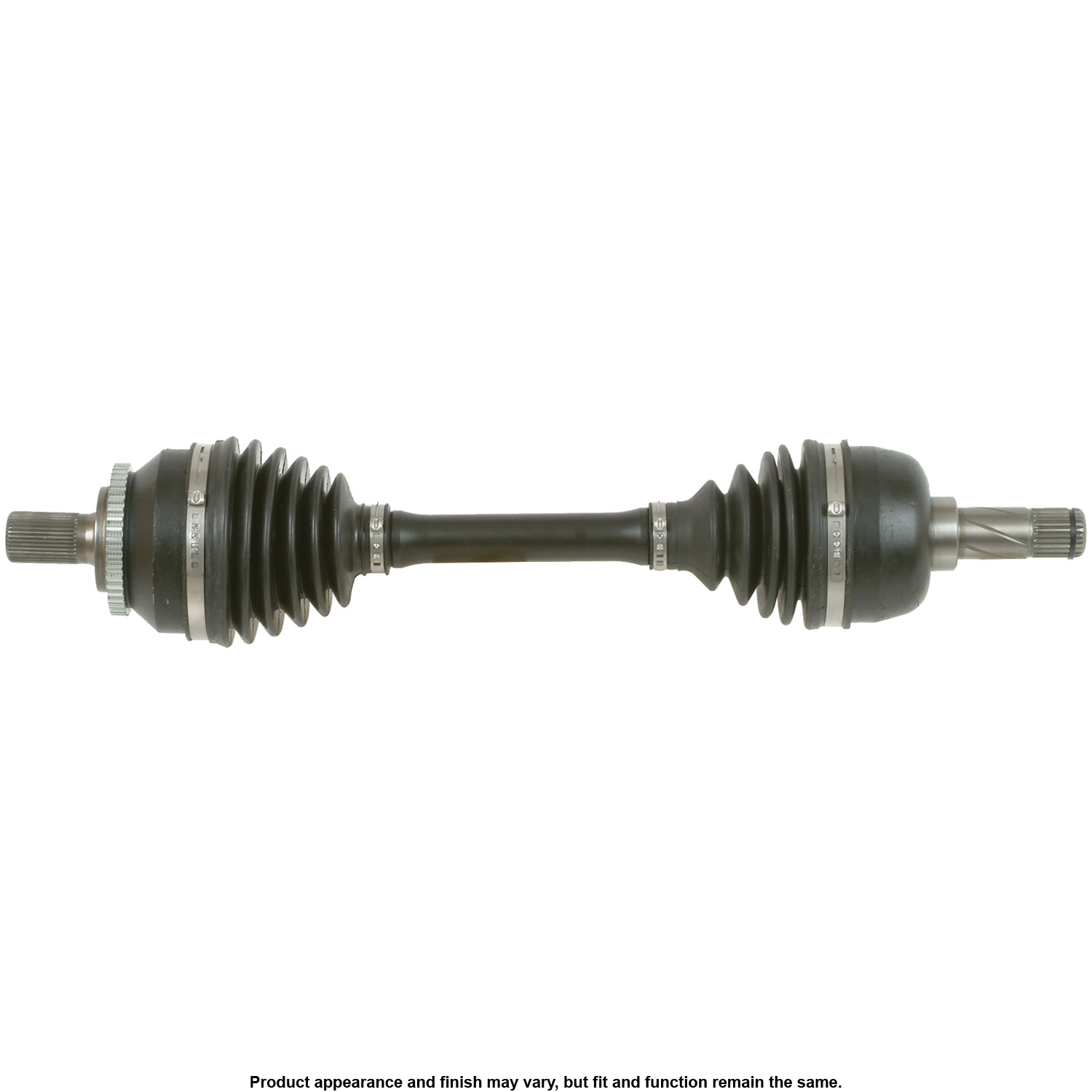

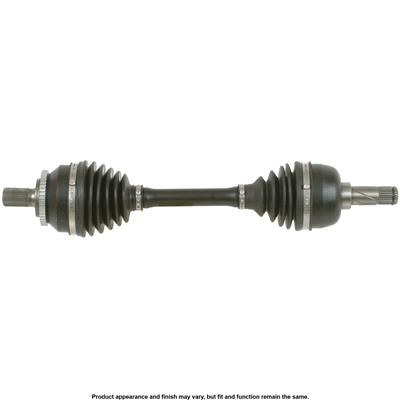

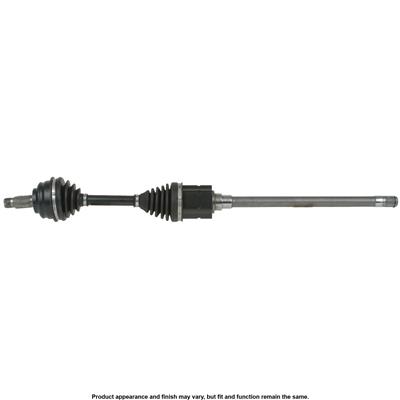

| Part Terminology | CV Axle Assembly |
