| Inlet Line Fitting Gender | Male |
| Mounting Hole Quantity | 2 |
| Rack Length (mm) | 1108.00 |
| Distance Between Mounting Holes (mm) | 365.13 |
| Total Turns Lock To Lock | 2.9375 |
| Is Prop Sixty Five Affected | No |
| Input Shaft Diameter (in) | 0.75 |
| Outlet Line Fitting Gender | Male |
| Is the item CARB affected | No |
| Thread Length (In) | 2.025 |
| Distance Between Mounting Holes (in) | 14.38 |
| Thread Length (mm) | 51.44 |
| Inlet Line Fitting Diameter | 11.66 |
| Tie Rod Ends Included | Yes |
| Hose Port Type | O-Ring |
| FAQs | This symptom is classified as "morning sickness". This condition is caused by Teflon sealing rings on the spool valve wearing grooves in the aluminum housing of the rack and pinion resulting in an internal bypass of pressure. Once the housing warms up, the metal will expand and reduce the pressure loss. The rack and pinion must be replaced. |
| Casting Material | Steel; Aluminum |
| Is Or Contains A Battery | No |
| Product Condition | Remanufactured |
| Input Shaft Length (mm) | 25.40 |
| Installation Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Number of Mounting Holes | 2 |
| Contains Electronic Components? | No |
| FAA_A4 | Yes, the boot clamps must be loosened to set the toe adjustment when performing a front-end alignment. Failure to loosen the clamps will twist the boots during turning maneuvers causing cracks to form on boot. Once the boot is torn, road debris and water intrusion can damage the rack end seal. |
| FAA_A2 | The geometry of the front suspension is designed to return the steering wheel to center coming out of a turn. If the steering wheel is not returning to center on its own when coming out of a turn, check the front-end alignment settings and inspect for binding steering components. |
| FAA_A3 | No. The rack and pinion has been adjusted at the factory. No additional adjustment is necessary. Try isolating the rack to find out where the play exists. If you hold the inner tie rod and have someone turn the wheel, does the play disappear? If so, the problem is in the front-end; if not, remove the steering knuckle and lightly install vise grips on the sector shaft and check for play. If no play exists, check steering column or steering knuckle. |
| FAA_A1 | The most likely cause of a power steering pump whine is air in the system. The steering system must be bled. This may take a few attempts depending on the design of the system. |
| Bellows Color | Black |
| Outer Tie Rods Included | No |
| Steering Rack Color/Finish | Black |
| Mounting Brackets Included | No |
| Prop 65 | NO |
| Rack Length (in) | 43.63 |
| E-Waste | No |
| Is Item A Chemical | No |
| FAQ_Q4 | Are there any steps that should be done prior to alignment? |
| Features and Benefits | Finished in protective coating to prevent corrosion and rust. |
| Is or contains a bulb? | No |
| Input Shaft Length (in) | 1.00 |
| FAQ_Q1 | I replaced the rack and now the power steering pump is whining. It never did this before! What happened? |
| Steering Input Shaft Spline Quantity | 36 |
| FAQ_Q3 | The replacement rack and pinion is installed and the steering wheel has too much play. Should I adjust the rack? |
| FAQ_Q2 | The steering wheel is not returning to center coming out of a turn. What could be causing this? |
| Outlet Line Fitting Diameter | 0.663 |
| Package Contents | Rack and Pinion; Sealing Kit; Instruction Sheet |
| Does it require SDS | No |
| First Application Year | 2014 |
| Is item a chemical? | No |
| SDS Required | No |
| Pressure Port Thread Size | M16 x 1.5 |
| Is the item CARB affected? | No |
| End To End Length | 43.625 |
| Mounting Hardware Included | No |
| Return Port Thread Size | M17 x 1.5 |
| Input Shaft Type | Grooved |
| Type | Hydraulic |
| Is Or Contains A Bulb | No |
| Steering Input Shaft Diameter | 0.748 |
| Is or contains a battery? | No |
| Input Shaft Diameter (mm) | 19.00 |
| Contains Electronic Components | No |
| Steering Rack Color | Black |
| Grade Type | Regular |

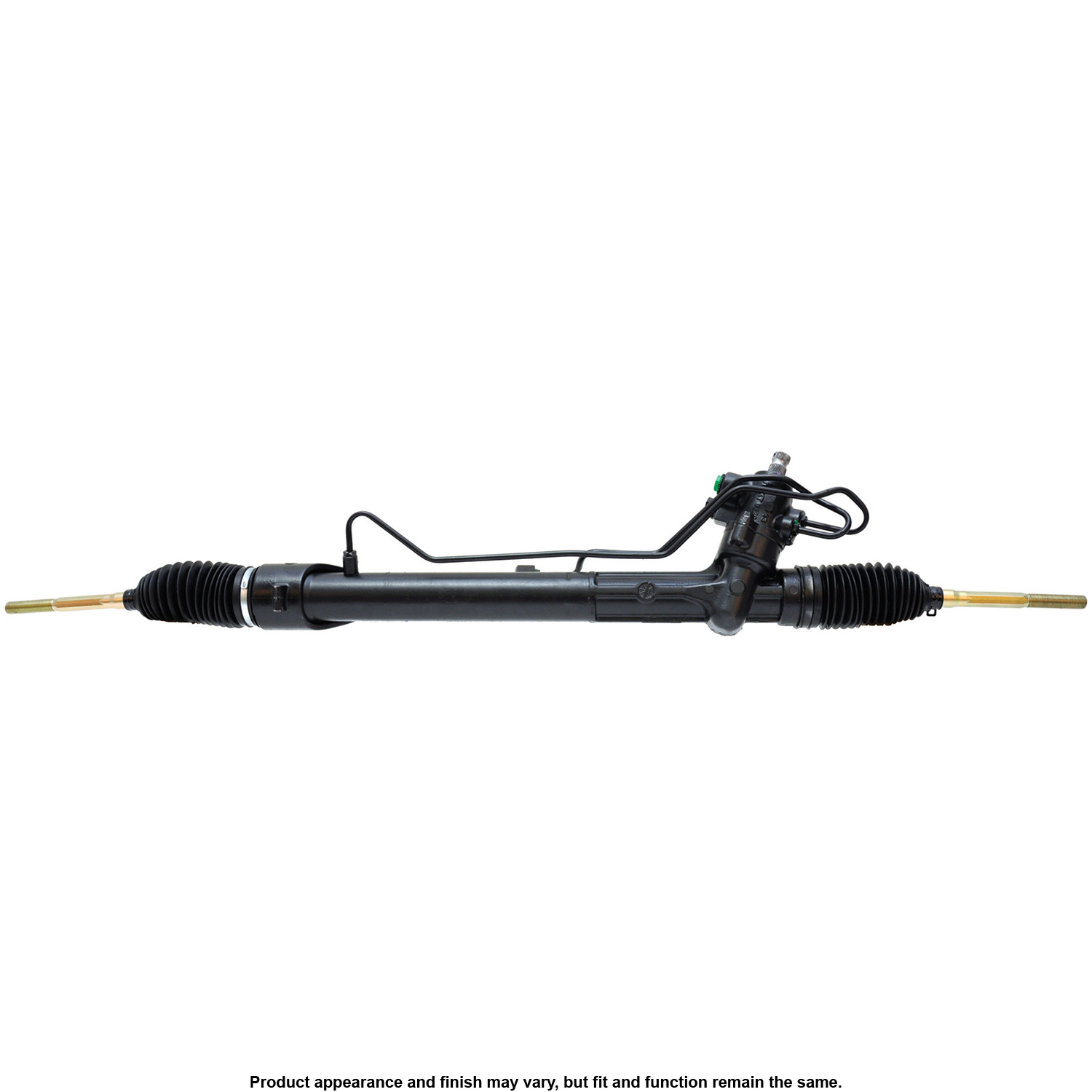

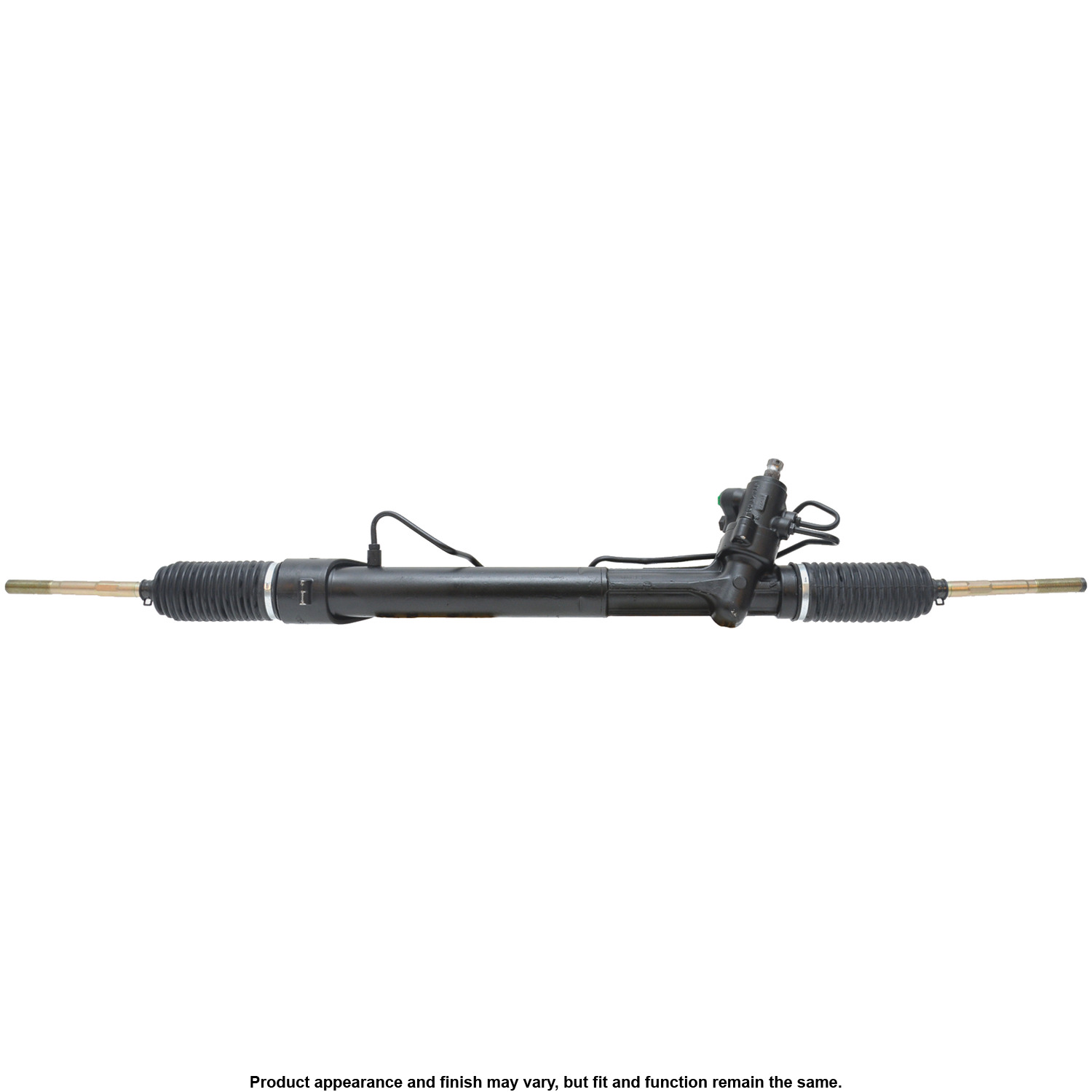

| Part Terminology | Rack and Pinion Assembly |
