| Features and Benefits | Finished in protective coating to prevent corrosion and rust. |
| Type | Electric |
| Bellows Color | Black |
| Grade Type | Regular |
| Casting Material | Aluminum |
| Outer Tie Rods Included | No |
| Mounting Hole Quantity | 2 |
| Steering Rack Color/Finish | Black |
| E-Waste | Yes |
| Number of Mounting Holes | 2 |
| Total Turns Lock To Lock | 2.94 |
| Input Shaft Length (in) | 2.38 |
| Input Shaft Diameter (in) | 0.73 |
| Distance Between Mounting Holes (in) | 17.00 |
| Thread Length (In) | 2.93 |
| Rack Length (mm) | 1384.30 |
| Rack Length (in) | 54.50 |
| Tie Rod Ends Included | Yes |
| Package Contents | EPS Rack; Caution Tag; Instruction Sheet; Packing Material |
| Installation Hardware Included | No |
| Mounting Brackets Included | No |
| Gasket Or Seal Included | No |
| Product Condition | Remanufactured |
| FAQ_Q1 | What do you replace on the rack? |
| FAA_A1 | Rubber seals, dust boots, wear items, lubricant(s), clamps and bearings are replaced 100%. Dampers, lock washers and drive belts are replaced where applicable. |
| FAQ_Q2 | Are the racks the same design as my original? |
| FAA_A2 | Yes, all units produced are verified to function to O.E. design specifications. Potential O.E. failure modes are evaluated and validated improvements are made. |
| FAQ_Q3 | Are there any precautions before I install? |
| FAA_A3 | Yes, the steering wheel must be held in a straight-ahead position using a suitable tool to prevent rotation while the intermediate shaft is disconnected from the rack and pinion. Failure to do so can result in damage to the clock spring within the steering column. If rotation of the intermediate shaft is suspected, the clock spring must be removed and re-centered. |
| FAQ_Q4 | Do I have to do any type of relearn after installation? |
| FAA_A4 | Yes, these systems are equipped with torque angle sensors in the steering column that need to be recalibrated after installation of the replacement rack and pinion. |
| FAQ_Q5 | Can I install one of your racks on my custom or classic vehicle? |
| FAA_A5 | Not recommended; radical modifications would be needed for installation of a modern electronic steering rack and pinion on a vehicle other than the O.E .Manufacturer intended application. |

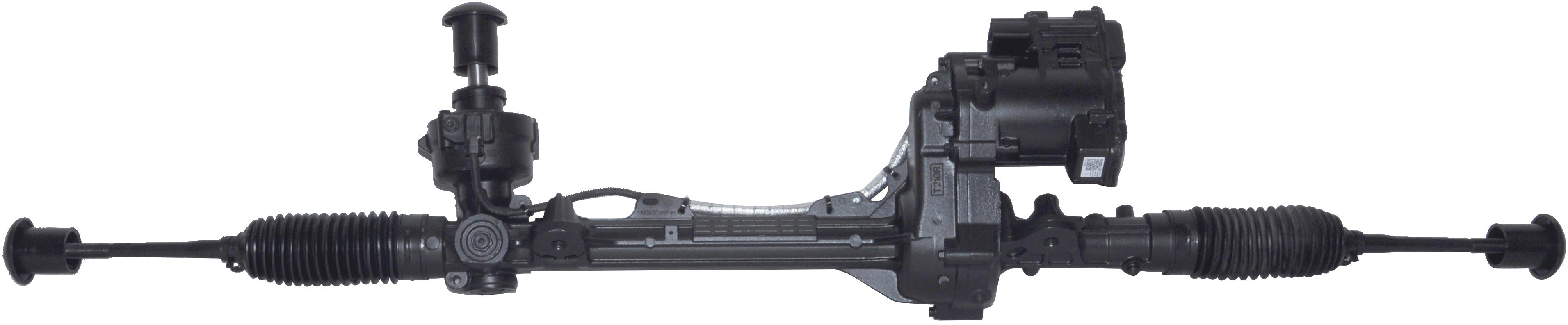

| Part Terminology | Rack and Pinion Assembly |
