| Shift Operation Type | Electronic |
| Mounting Hole Quantity | 3 |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Terminal Gender | Male |
| Shift Operation | Electronic |
| Connector Quantity | 1 |
| FAQs | Yes, the transfer case should be manually shifted into the two-wheel drive position at the shift shaft before the installation of the replacement motor. Typically the positions are spring-loaded and can be rotated manually. |
| Is Or Contains A Battery | No |
| Product Condition | New |
| Terminal Type | Bullet |
| Contains Electronic Components? | No |
| FAA_A4 | The replacement motor drive is factory-set in the 2 wheel drive position. |
| FAA_A5 | This may be caused by a transfer case control module calibration issue. Check for DTC's and calibration version − there may be a software update from the Original Equipment Manufacturer. If the motor attempts to shift, but sounds weak, check the front axle lock actuator. If the axle lock does not engage, the motor cannot complete its engagement. |
| Connector Shape | Rectangle |
| FAA_A2 | Yes, the transfer case should be manually shifted into the two-wheel drive position at the shift shaft before the installation of the replacement motor. Typically the positions are spring-loaded and can be rotated manually. |
| FAA_A3 | A crescent wrench can be used for this operation. |
| FAA_A1 | Do not operate the motor while it is off the transfer case. This can damage the motor and set an error code that must be cleared before the motor will operate again. Shift the transfer case into the position of the motor to install. |
| Prop 65 | NO |
| Wiring Harness Length | 266.7 |
| Sprocket Tooth Quantity | 3 |
| Component Housing Material | Steel |
| E-Waste | Yes |
| Is Item A Chemical | No |
| Wiring Harness Included | Yes |
| FAQ_Q5 | The Service 4WD light is on and/or the 4WD is inoperative. What could cause this condition? |
| FAQ_Q4 | What drivetrain position is the replacement motor drive placed in? |
| Features and Benefits | Load testing ensures torque power specification meets industry standards. |
| Is or contains a bulb? | No |
| Wire Quantity | 7 |
| FAQ_Q1 | The replacement motor drive is in a different position, can I reposition before installing? |
| FAQ_Q3 | What tool can I use to manually shift the transfer case into the two-wheel drive position before I install the replacement motor? |
| FAQ_Q2 | Can I install the replacement motor if my Transfer Case motor failed in 4 Wheel Drive Low or High? |
| Package Contents | Transfer Case Motor; Instruction Sheet |
| Does it require SDS | No |
| Mount Type | Bolt |
| First Application Year | 2005 |
| Terminal Quantity | 7 |
| Is item a chemical? | No |
| SDS Required | No |
| Connector/Terminal Configuration | Bullet |
| Is the item CARB affected? | No |
| Connector Gender | Female |
| Mounting Hardware Included | No |
| Gear of Chain Type | Gear |
| Is Or Contains A Bulb | No |
| Is or contains a battery? | No |
| Contains Electronic Components | No |
| Grade Type | Performance |

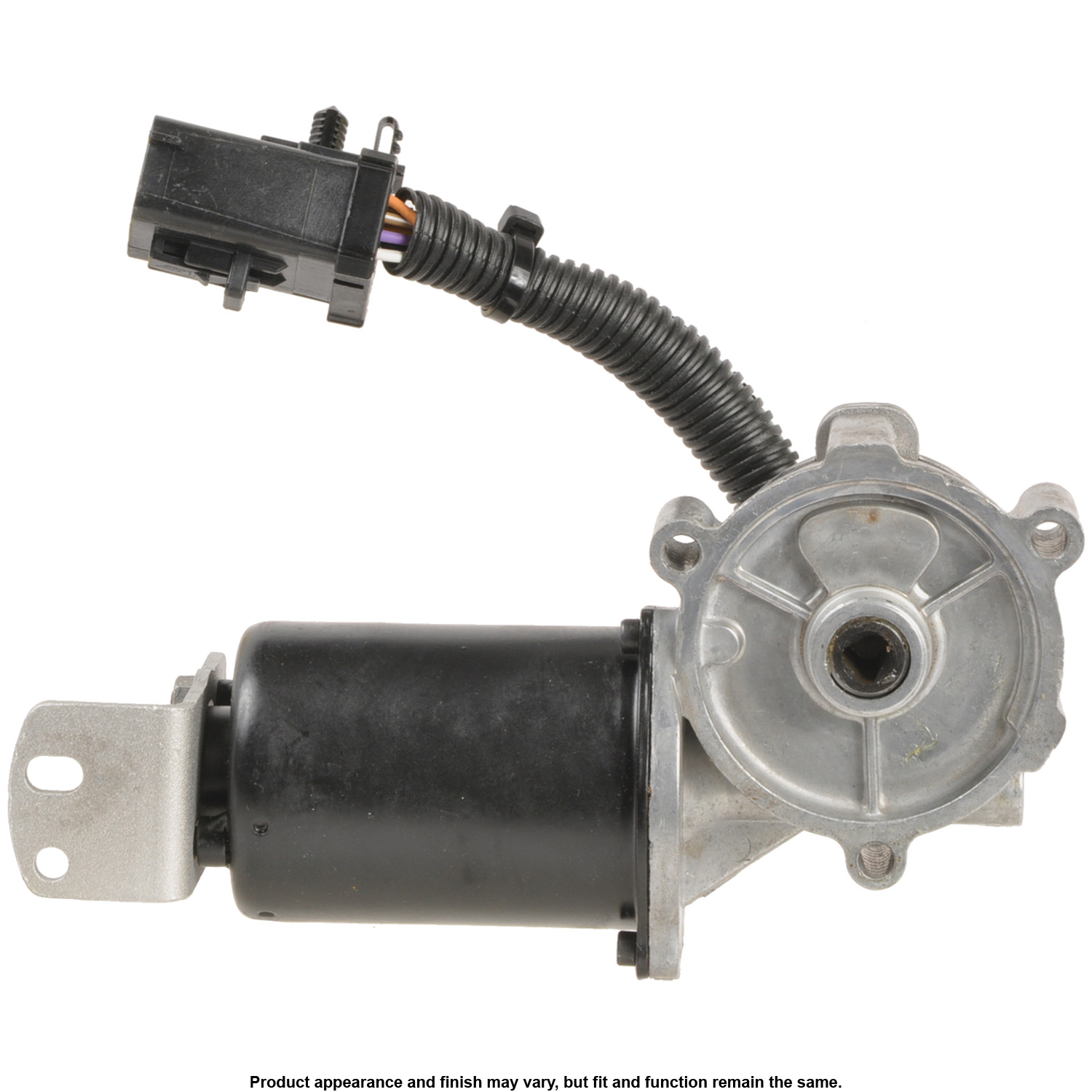

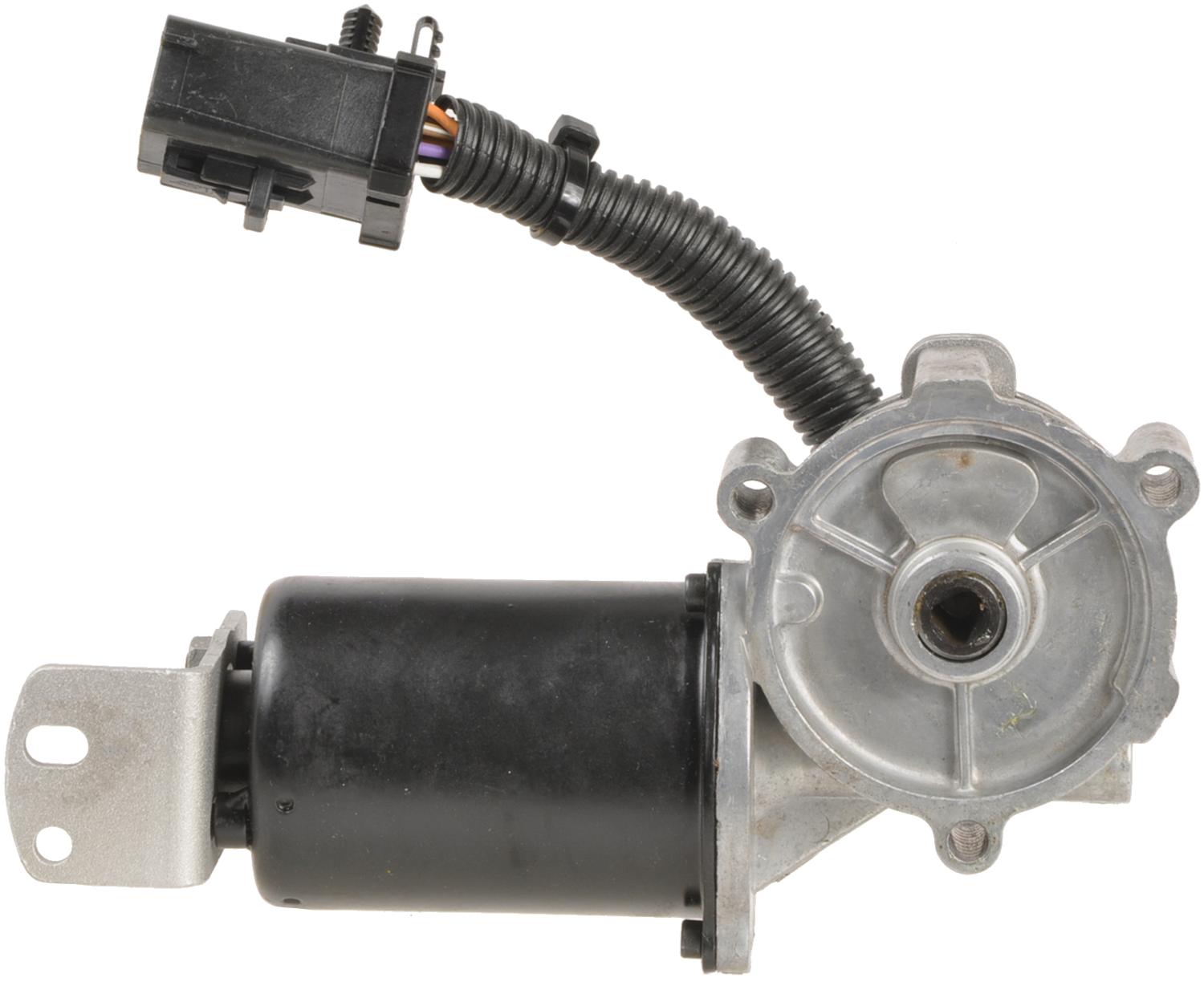

| Part Terminology | Transfer Case Motor |
